Features

• A general-purpose construction laser that adds digital grade capability, suiting a wide range of levelling and grading jobs on site.
• Grade can be dialled in on a single or dual axis quickly and easily at the touch of a button, saving setup time.
• The Smart Slope function continuously monitors time and temperature changes to keep grade performance accurate throughout the working day.
• Delivers strong performance with the full range of Leica Rod-Eye receivers, and working range can be extended by pairing it with the Rod-Eye 160 Digital laser receiver.
• Powered by Li-ion rechargeable batteries, with a charger supplied for convenient recharging.

Specifications

• Brand: Leica Geosystems
• Model: LG6006010
• Functionality: Self-levelling horizontal, dial-in grade in dual axis
• Range (Diameter): 1,100 m
• Self-Levelling Accuracy (at 25 degrees C): +/- 1.5 mm @ 30 m
• Self-Levelling Range: +/- 5 degrees
• Grade Range: +/- 8% SG
• Smart Slope: Yes
• Rotation Speed: 10 rps
• Laser Diode Type/Class: 635 nm / Class 1
• Dimensions (H x W x D): 212 x 239 x 192 mm
• Weight with Batteries: 2.6 kg
• Protection Class: IP67 (splash water / dust proof)
• Operating Temperature Range: -20 to +50 degrees C

Includes

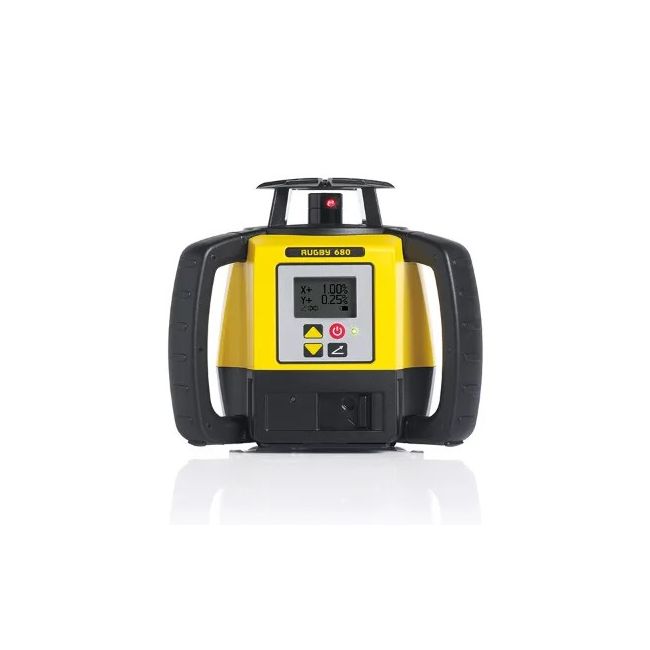

• Leica Rugby 680 Rotating Laser Level
• Leica Rod-Eye Digital Laser Receiver and Bracket
• Li-Ion Battery Pack
• Battery Charger
• Carrying Case
