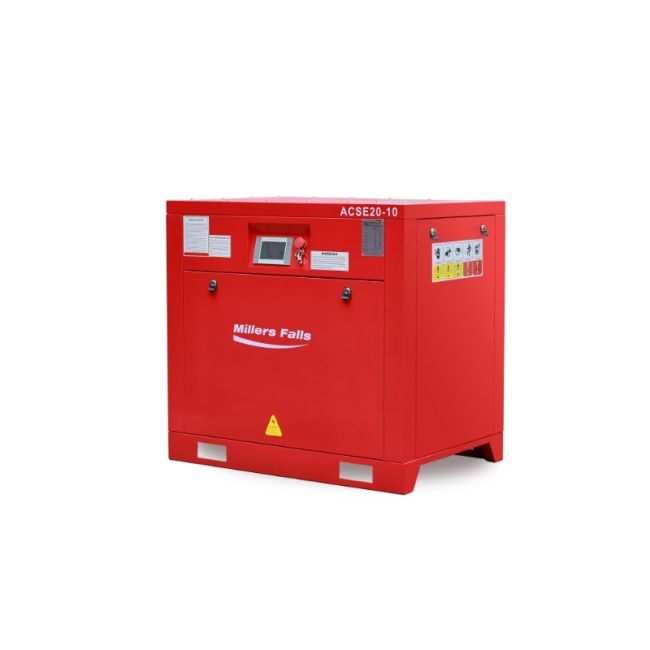

Millers Falls 20HP 10 Bar 74CFM Rotary Screw Air Compressor ACSE20-10
Availability:
In stock
SKU
ACSE20-10
$5,900.00
Delivery Availability
Delivery Cost & Shipping Time
Features
- Quiet, Efficient, Powerful, Reliable and Affordable
- Advanced control system allowing easy monitoring, diagnostics, and adjustment of compressor settingsPermanent Magnet Variable Frequency Screw CompressorFast Storage, Fast Flow SupplySuitable For High Temperature and Continuous WorkHigh Efficiency VSD Motor Low Power ConsumptionLong Working LifeSupports Low Voltage StartLow Maintenance CostEnclosed Cabinet Low noise 63 dbLow Vibration
Specifications
- Power Supply: 415V 50
- Hz Motor Speed: 2920 rpm
- Drive Type: Direct Drive Coupled
- Free Air Delivery: 74 CFM / 2100 LPM
- Maximum Working Pressure: 145 PSI (10 Bar)
- Working Temperature: 0-45 C Electric Motor: 15 kw 20 HP Permanent Magnet High Efficiency Motor
- Noise Level: 63dB at 7 metres
- Air Outlet: G 1/2" threaded female
- Net Weight: 290kg
- Dimensions: 70 x 67 x 125 cm
- Shipping Weight: 310 kg
- Shipping Dimensions: 108 x 75 x 102 cm
| MPN | ACSE20-10 |
|---|---|
| Manufacturer | Millers Falls |
