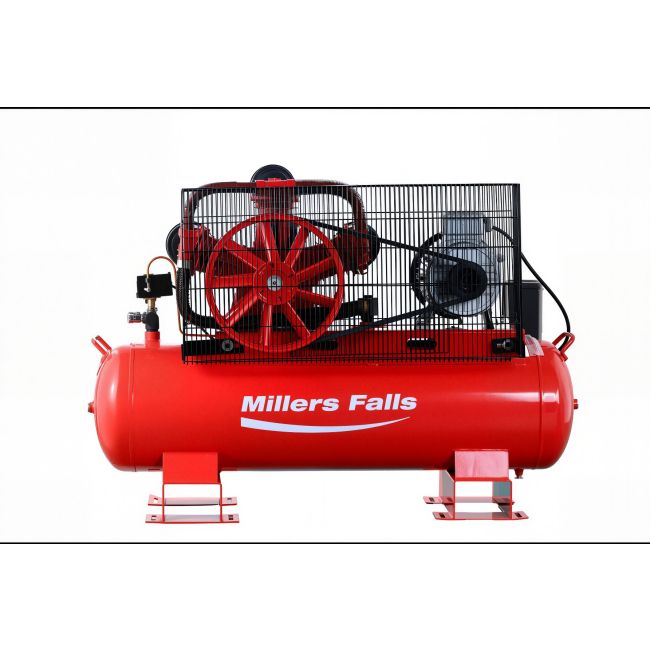

Millers Falls Belt Drive Air Compressor 7.5HP 150L 415V 3 Phase ACB75150E
or 4 interest-free payments of $393.75 with Afterpay or Zip
Slow revolution 3-cylinder full cast iron pump. MEPS Compliant Three Phase Electric Motor 415volt, 5.5KW / 7.5HP. Unique heavy duty high flow belt guards. Certified Australian Standards tank. 1 x 1/2 bsp air outlet and 1 x 1/4bsp outlet to allow easy connection to an airline or a permanent system. The unit also has a tank pressure gauge and automatic start stop switch fitted. Model No: ACB75150E. Pump: 3090, 90mm Diameter 3 Pistons. Displacement: 900 L/ min (33 cfm). Tank Capacity: 150 Litres. Maximum Pressure: 115 PSI 8 Bar. Pump RPM: 780 rpm. Motor: 7.5hp (5.5kw)Volts/amps: 415v. Shipping Dimensions: 160kg, 130 x 48 x 98cm.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Slow revolution 3-cylinder full cast iron pump
- MEPS Compliant Three Phase Electric Motor 415volt, 5.5KW / 7.5HP
- Unique heavy duty high flow belt guards
- Certified Australian Standards tank. 1 x 1/2 bsp air outlet and 1 x 1/4bsp outlet to allow easy connection to an airline or a permanent system
- The unit also has a tank pressure gauge and automatic start stop switch fitted
Specifications
- Model No: ACB75150E
- Pump: 3090, 90mm Diameter 3 Pistons
- Displacement: 900 L/ min (33 cfm)
- Tank Capacity: 150 Litres
- Maximum Pressure: 115 PSI 8 Bar
- Pump RPM: 780 rpm
- Motor: 7.5hp (5.5kw)Volts/amps: 415v
- Shipping Dimensions: 160kg, 130 x 48 x 98cm
- MPN
- ACB75150E
- Manufacturer
- Millers Falls
