Features

• Powered by a world-renowned KUBOTA V2203 4-cylinder diesel engine for exceptional reliability and performance.
• Equipped with a premium Leroy Somer 4-pole brushless alternator with AVR for stable and consistent power output.
• Delivers up to 24 hours of continuous power at prime load with a large 111L double-bunded fuel tank.
• Low 1500 RPM operation ensures smoother performance, reduced wear, and improved fuel efficiency.
• Fuel-efficient operation at 3.51 litres per hour (prime load).
• Silenced canopy with sound-deadening and heat insulation, operating at just 67 dBA at 7 metres.
• Oversized 50°C-rated radiator designed for reliable use in extreme Australian temperatures.
• Robust, lockable, powder-coated cabinet suitable for outdoor and industrial environments.
• Fork slippers and lifting hooks for easy transport and manoeuvrability.
• Earth leakage protection with Australian standard IP67 RCBOs and approved IP66 outlets.
• RCBO-protected hardwire terminals with additional protective cover.
• Smartgen 6120 controller for simple operation and monitoring.
• 2-wire remote start capability with ATS connection socket and 4G remote start compatibility.
• Emergency E-stop, shunt relay auto stop, oil pressure shutdown, and over-temperature shutdown for enhanced safety.
• Interior cabinet light with switch for convenient servicing.
• Australian compliant wiring with M.E.N link and site-safe lockable canopy.
• Mine site ready with bunded fuel tank and drain plugs fitted for water, oil, and diesel.

Specifications

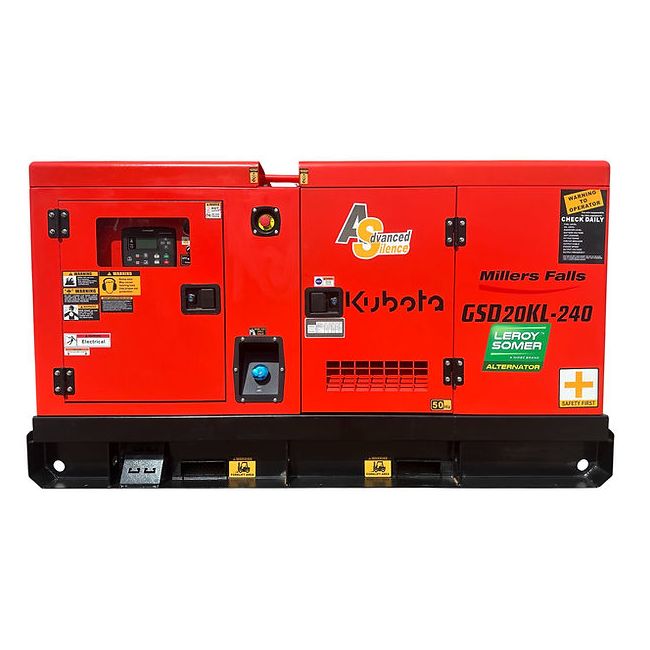

• Model: GSD20KL-240
• Prime Power: 16 kW / 16 kVA, 240V, 67 Amps
• Standby Power: 17.6 kW / 17.6 kVA
• Power Factor: 1
• Phase: Single Phase 240V
• Frequency: 50 Hz
• Engine: KUBOTA V2203, 4 Cylinder Diesel
• RPM: 1500/min
• Cooling System: Water cooled with 50°C-rated radiator
• Alternator: Leroy Somer 4 Pole Brushless Synchronous with AVR
• Starting System: 12V electric start with heavy-duty battery and charger
• Controller: Smartgen 6120
• Remote Start: 2-wire remote start capable
• Over Temperature Protection: Included
• Over Current Protection: Included
• Low Oil Protection: Included
• Lockable Battery Isolator: Included
• Emergency Stop: Included
• Shunt Relay Auto Stop: Included
• Noise Level: 67 dBA at 7 metres
• Running Time: Up to 24 hours at prime load
• Fuel Tank Capacity: 111 Litres with fuel gauge
• Fuel Consumption: 3.51 L/hour at prime load
• Cabinet: Lockable, sound-deadened, powder-coated for external use
• Single Phase Outlets: 3 x 15 Amp IP66
• RCD / RCBO: Australian Standard IP67 enclosed
• Dry Weight: 820 kg
• Dimensions: 2200mm (L) x 1000mm (W) x 1230mm (H)
