Features

• Powered by a reliable FAW 4DX22-65D 4-cylinder 3.86L turbocharged diesel engine for strong and consistent performance.
• Fitted with a quality Stamford Style OEM 4-pole brushless alternator with AVR for stable three-phase power output.
• Delivers 50 kVA prime power with up to 24 hours runtime at 75% load from a 219L double-bunded fuel tank.
• Low 1500 RPM operation ensures smoother running, improved durability, and efficient performance.
• Fuel consumption of 12.14 litres per hour at 75% prime load.
• Silenced, sound-attenuated canopy operating at 67 dBA at 7 metres.
• Oversized 50°C-rated radiator designed for extreme Australian temperature conditions.
• Heavy-duty, heat-insulated, lockable cabinet with powder-coated finish for outdoor use.
• Fork slippers and lifting hooks for easy transport and site positioning.
• Earth leakage protection with IP67 RCBOs and approved IP66 outlets.
• RCBO-protected hardwire terminals with additional protective cover.
• Smartgen 6120 controller for straightforward monitoring and control.
• 2-wire remote start capability with ATS connection socket and 4G remote start compatibility.
• Oil pressure shutdown, over-temperature shutdown, and over-current protection included.
• Emergency E-stop, shunt relay auto stop, and lockable battery isolator fitted.
• Interior cabinet light with switch for servicing convenience.
• Mine site ready with bunded fuel tank and drain plugs for water, oil, and diesel.
• Australian compliant wiring with M.E.N link and site-safe lockable canopy.

Specifications

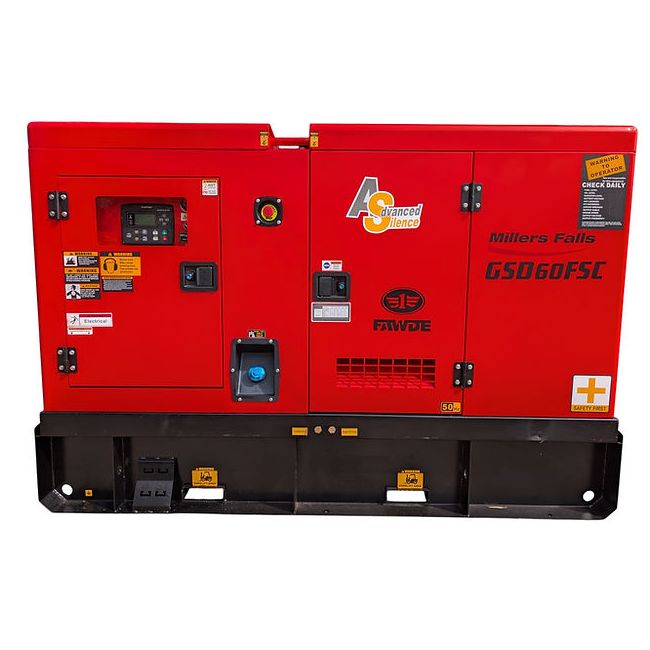

• Model: GSD60FSC
• Prime Power: 40 kW / 50 kVA, 415V, 69.6 Amps
• Standby Power: 44 kW / 56 kVA
• Power Factor: 0.8
• Phase: Three Phase 415V
• Frequency: 50 Hz
• Engine: FAW 4DX22-65D, 4 Cylinder 3.86L Turbo Diesel
• RPM: 1500/min
• Cooling System: Water cooled with 50°C-rated radiator
• Alternator: Stamford Style OEM 4 Pole Brushless with AVR
• Starting System: 12V electric start with heavy-duty battery and charger
• Controller: Smartgen 6120
• Remote Start: 2-wire remote start capable
• Over Temperature Protection: Included
• Over Current Protection: Included
• Low Oil Protection: Included
• Lockable Battery Isolator: Included
• Emergency Stop: Included
• Shunt Relay Auto Stop: Included
• Noise Level: 67 dBA at 7 metres
• Running Time: Up to 24 hours at 75% prime load
• Fuel Tank Capacity: 219 Litres with fuel gauge
• Fuel Consumption: 12.14 L/hour at 75% prime load
• Cabinet: Lockable, fully sound-deadened, powder-coated for external use
• Outlets: 1 x 15 Amp IP66 (Single Phase)
• Outlets: 1 x 20 Amp IP66 (Three Phase)
• Outlets: 2 x 32 Amp IP66 (Three Phase)
• Hardwire Terminals: Included, RCBO IP67 protected with extra cover
• Dry Weight: 1200 kg
• Dimensions: 2300mm (L) x 1100mm (W) x 1520mm (H)
