Features

• Powered by a world-renowned CUMMINS 4BTA3.9-G2 4-cylinder 3.9L turbocharged diesel engine for exceptional durability and performance.
• Premium Leroy Somer 4-pole brushless alternator with AVR for stable and reliable three-phase power output.
• Delivers 62.5 kVA prime power with up to 24 hours runtime at 75% load from a 268L double-bunded fuel tank.
• Low 1500 RPM operation ensures smooth running, reduced engine wear, and long service life.
• Fuel-efficient consumption at 14.9 litres per hour (75% prime load).
• Silenced, sound-attenuated canopy operating at just 67 dBA at 7 metres.
• Oversized 50°C-rated radiator engineered for harsh Australian temperature conditions.
• Heavy-duty, heat-insulated, lockable cabinet with powder-coated finish for outdoor applications.
• Fork slippers and lifting hooks for easy transport and positioning.
• Earth leakage protection with IP67 RCBOs and approved IP66 outlets.
• RCBO-protected hardwire terminals with additional safety cover.
• Smartgen 6120 controller for simple monitoring and control.
• 2-wire remote start capability with ATS connection socket and 4G remote start compatibility.
• Oil pressure shutdown, over-temperature shutdown, and over-current protection included.
• Emergency E-stop, shunt relay auto stop, and lockable battery isolator fitted.
• Interior cabinet light with switch for maintenance convenience.
• Mine site ready with bunded fuel tank and drain plugs for water, oil, and diesel.
• Australian compliant wiring with M.E.N link and site-safe lockable canopy.

Specifications

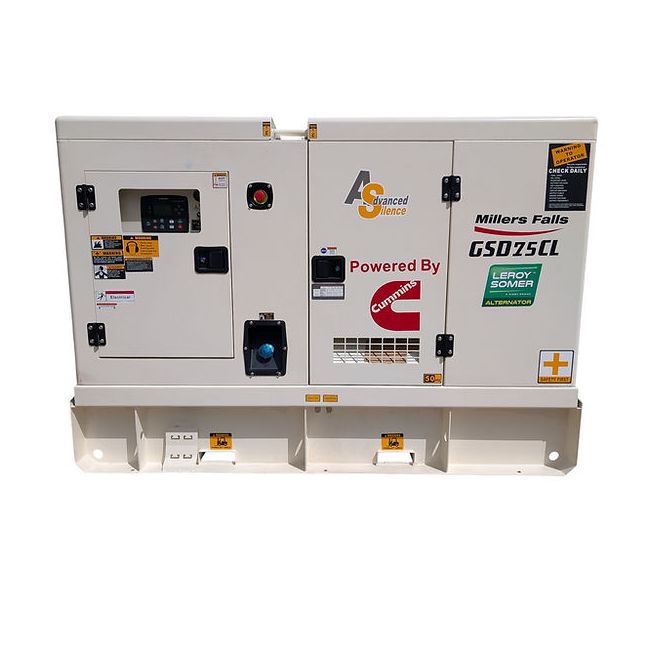

• Model: GSD75CL
• Prime Power: 50 kW / 62.5 kVA, 415V, 95.6 Amps
• Standby Power: 55 kW / 68.8 kVA
• Power Factor: 0.8
• Phase: Three Phase 415V
• Frequency: 50 Hz
• Engine: CUMMINS 4BTA3.9-G2, 4 Cylinder 3.9L Turbo Diesel
• RPM: 1500/min
• Cooling System: Water cooled with 50°C-rated radiator
• Alternator: Leroy Somer 4 Pole Brushless Synchronous with AVR
• Starting System: 12V electric start with heavy-duty battery and charger
• Controller: Smartgen 6120
• Remote Start: 2-wire remote start capable
• Over Temperature Protection: Yes
• Over Current Protection: Yes
• Low Oil Protection: Yes
• Lockable Battery Isolator: Yes
• Emergency Stop: Yes
• Shunt Relay Auto Stop: Yes
• Noise Level: 67 dBA at 7 metres
• Running Time: Up to 24 hours at 75% prime load
• Fuel Tank Capacity: 268 Litres with fuel gauge
• Fuel Consumption: 14.9 L/hour at 75% prime load
• Cabinet: Lockable, fully sound-deadened, powder-coated for external use
• Outlets: 1 x 15 Amp IP66 (Single Phase)
• Outlets: 1 x 20 Amp IP66 (Three Phase)
• Outlets: 2 x 32 Amp IP66 (Three Phase)
• Hardwire Terminals: Included, RCBO IP67 protected with extra cover
• Dry Weight: 1260 kg
• Dimensions: 2300mm (L) x 1100mm (W) x 1580mm (H)
