Features

• Powered by a reliable 6.5HP OHV 4-stroke air-cooled petrol engine.
• Electric key start for effortless and convenient operation.
• High 22-ton splitting force for tackling tough hardwoods with ease.
• Large 90mm x 574mm hydraulic cylinder for rapid pressure build-up.
• 178mm hardened cast steel splitting wedge for long-lasting durability.
• Fast 14-second split and return cycle to boost productivity.
• Automatic return control valve retracts ram when lever is released, reducing downtime.
• Maximum log length capacity of 610mm (24 inches).
• Horizontal working position for stable and efficient operation.
• 13-inch pneumatic tyres for easy mobility across properties.
• 50mm cast steel coupler and support leg for convenient towing and transport.
• Maximum recommended towing speed of 8 km/h.

Specifications

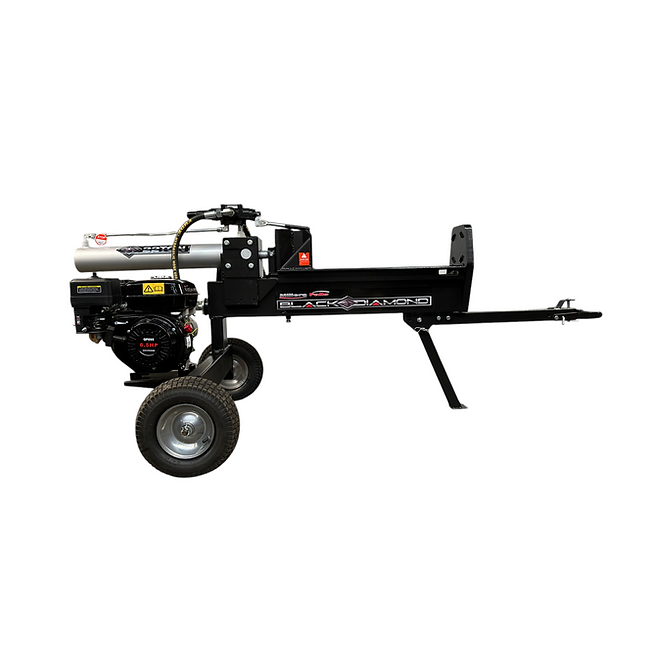

• Model: LS22ESBD
• Engine: 6.5HP, 4-Stroke, OHV Petrol, Air Cooled
• Hydraulic Cylinder Size: 90mm x 574mm
• Hydraulic Oil Supplied: 5 Litres
• Hydraulic Oil Capacity: 9 Litres (ISO32 or ISO46)
• Maximum Splitting Force: 22 Tons
• Wedge Height: 178mm (7 inches)
• Cycle Time: 14 seconds
• Maximum Log Length: 610mm (24 inches)
• Working Position: Horizontal only
• Wheels: 13-inch pneumatic
• Towing Speed: Maximum 8 km/h
• Shipping Dimensions: 168 x 42 x 69 cm
• Shipping Weight: 165 kg
