Features

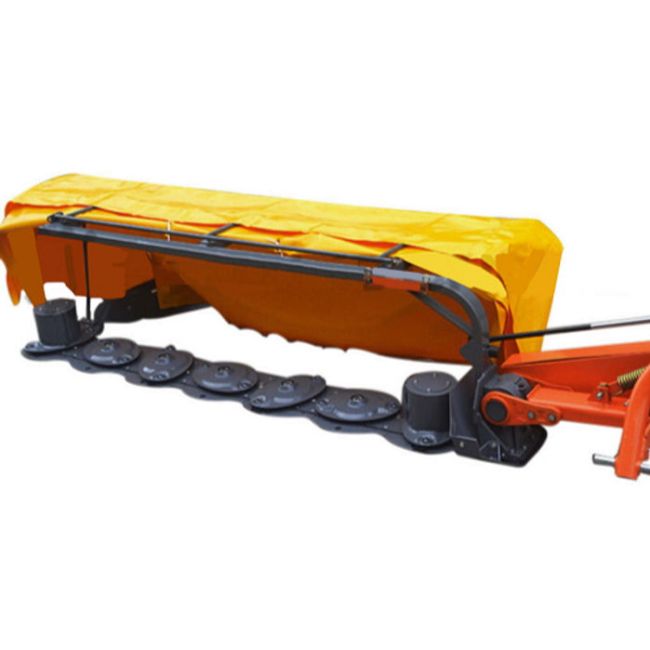

• 2400mm disc mower with six oval cutting discs for fast and efficient hay cutting
• Each disc fitted with two high-quality reversible blades (12 blades total)
• Designed to handle wet, thick and laid-down hay with ease
• Enclosed gear-driven cutter bar for long-lasting, reliable performance
• Rock guards and skid shoes protect discs and guide the cutter bar over uneven terrain
• Adjustable flotation springs to control cutter bar ground pressure
• Spring-loaded breakaway latch helps protect the cutter bar from obstacles
• Articulation joint allows operation above and below horizontal positions
• Single-acting hydraulic cylinder for quick transition between working and transport positions
• 540 RPM PTO driveline with overrunning clutch to protect tractor driveline
• Durable powder-coated finish for extended service life
• Compatible with Category 1 & 2 three-point linkage

Specifications

• Working Width: 2400mm
• 3-Point Linkage: CAT 1 & 2
• Number of Mowing Discs: 6
• Number of Mowing Blades: 12
• Number of Drums: 2
• PTO Speed: 540 rpm
• Recommended Power: 45HP
• Weight: 530kg
• Shipping Weight: 565kg
• Shipping Dimensions: 277 x 75 x 90 cm (crate)
