Features

• 1000kg lifting capacity ideal for small to medium material handling tasks
• Adjustable lifting height from 90mm to 1600mm for versatile use
• Durable steel construction ensures strength and long-term reliability
• Easy-to-use hydraulic controls provide smooth lifting and lowering
• Controllable descending speed for safe operation
• Adjustable fork outside distance from 295mm to 680mm for handling various pallet sizes
• Compact design suitable for flat surfaces in warehouses and industrial settings
• Front and rear wheels designed for stability and easy maneuvering

Specifications

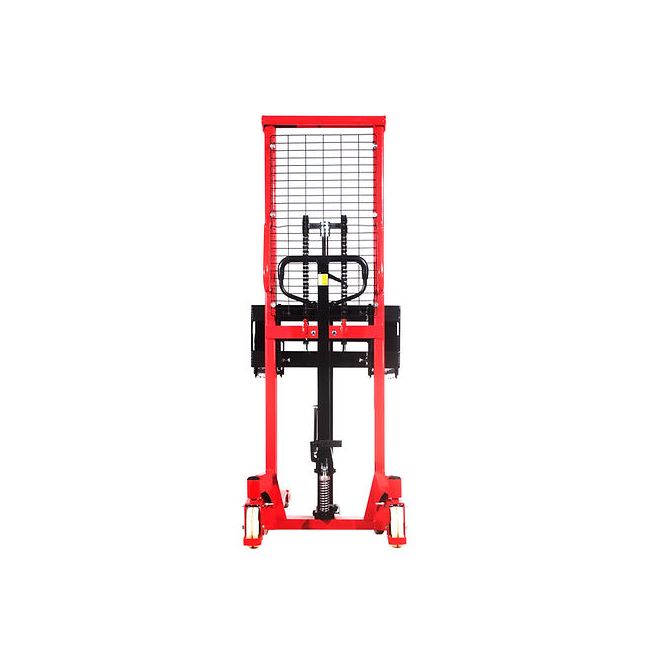

• Model: WH7615
• Capacity: 1000kg
• Lifting Height: 90mm – 1600mm
• Fork Length: 1070mm
• Fork Width: 140mm
• Fork Outside Distance: 295mm – 680mm
• Lifting Speed: ≥22mm/time
• Overall Dimensions: 1424 x 720 x 1980mm
• Front Wheel Diameter: Φ80 x 60mm
• Rear Wheel Diameter: Φ180 x 50mm
• Self Weight: 170kg
• Hydraulic Oil: ISO VG32, 3.0L capacity
