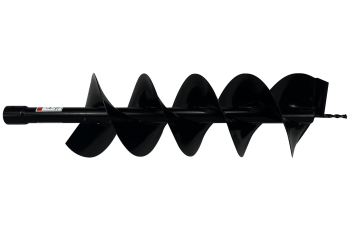

Millers Falls Earth Auger A12-Auger 1300H X 310Dia PHDA12A

Features

• Designed to suit 30HP–90HP 3-point linkage tractor post hole diggers.
• Compatible with 2” (50.8mm) output shaft using dual shear bolts (90° offset).
• Available in diameters from 150mm (6”) to 500mm (20”).
• Heavy-duty welded steel construction for long-lasting durability.
• Spiral flight design for efficient soil removal and clean hole formation.
• Bolt-on fishtail auger point for improved ground penetration.
• Twin replaceable cutter sets for extended service life.
• Commercial-grade design with replaceable tip and lead screw.
• Suitable for fencing, decking, tree planting, and construction applications.
• Capable of digging close to 1 metre deep (depending on post hole digger).
• Excavated soil is deposited neatly around the hole edge.
• Auger height of 1300mm with 900mm flute depth for deep drilling performance.

Specifications

• Auger Height: 1300mm
• Flute Length: 900mm
• PHDA6A: 150mm (6”) Diameter, 1200mm Length, 900mm Flute, 15kg
• PHDA8A: 200mm (8”) Diameter, 1200mm Length, 900mm Flute, 16kg
• PHDA9A: 230mm (9”) Diameter, 1200mm Length, 900mm Flute, 18kg
• PHDA10A: 250mm (10”) Diameter, 1200mm Length, 900mm Flute, 19kg
• PHDA12A: 300mm (12”) Diameter, 1200mm Length, 900mm Flute, 22kg
• PHDA14A: 350mm (14”) Diameter, 1200mm Length, 900mm Flute, 25kg
• PHDA16A: 400mm (16”) Diameter, 1200mm Length, 900mm Flute, 30kg
• PHDA18A: 450mm (18”) Diameter, 1200mm Length, 900mm Flute, 33kg
• PHDA20A: 500mm (20”) Diameter, 1200mm Length, 900mm Flute, 44kg
