Features

• Measures AC current and non-contact voltage (NCVT) via the clamp, and AC/DC voltage, resistance, and continuity via test leads
• Built-in NCVT sensor in the clamp jaw for quick voltage detection without contact
• Auto-ranging capability for simplified and accurate measurement across various applications
• Backlit 2000-count LCD ensures easy viewing in dimly lit environments
• Equipped with Auto Hold, Data Hold, and Max Value functions for user convenience
• Auto power-off after 10 minutes extends battery life during periods of inactivity
• Durable design with 6.6 ft (2 m) drop protection for demanding job site conditions
• Power ‘On’ indicator and low-battery warning help ensure uninterrupted use
• Test lead holder and compatibility with optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
• Certified with CAT III 600V safety rating and CE compliance for safe professional use

Specifications

• Type: Auto-Ranging Clamp Meter
• Jaw Size: 1.6" (4.1 cm)
• Voltage Range: 600V AC/DC
• Current Range: 400A AC
• Resistance: Up to 20 MΩ
• Display: Backlit 2000 Count LCD
• Accuracy: ±1.0% + 3 digits
• Safety Rating: CAT III 600V, Class 2, Double Insulated
• Drop Protection: 6.6 ft (2 m)
• Auto Shut-Off: Yes
• Material: ABS/Electronics
• Power Supply: 3 × AAA batteries
• Voltage/Frequency: 220–240V ~ 50Hz
• Dimensions: 21.5 × 8.9 × 3.8 cm (L × W × H)
• Weight: 314 g (11 oz)

Includes

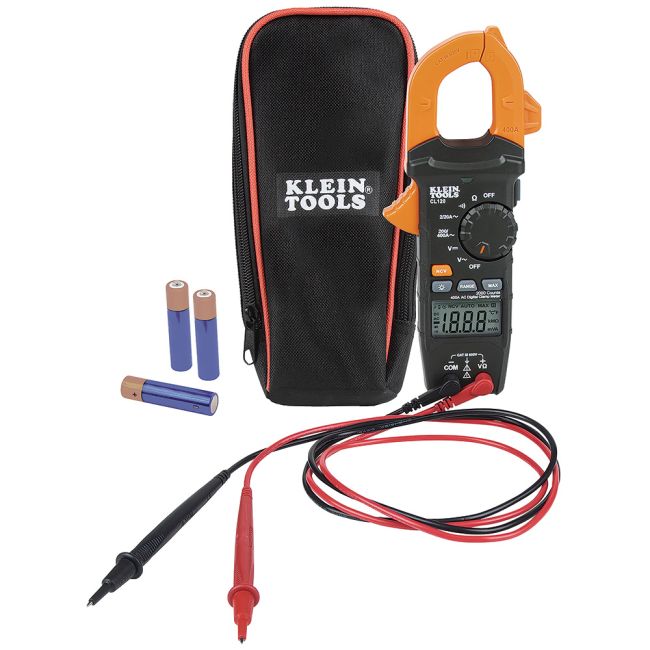

• 1 × Klein Tools CL120 Clamp Meter
• 1 × Carrying Case
• 1 × Set of Test Leads with CAT III/CAT IV safety caps
• 3 × AAA Batteries
• 1 × User Instruction Manual
