Features

• True RMS measurements deliver accurate, reliable readings across a wide range of electrical applications
• Measures AC/DC voltage up to 1000V, AC/DC current from 10mA to 600A, resistance up to 60MΩ, DC micro amps, capacitance up to 6000µF, temperature, frequency/duty cycle, inrush, diode, and continuity
• Low impedance (LoZ) mode identifies and eliminates ghost voltages to prevent false readings
• Non-contact voltage (NCV) detection built into the clamp jaw, with escalating audible and visual alerts as the clamp approaches a voltage source
• Transflective reverse-contrast 6000-count LCD display ensures clear visibility in both bright sunlight and dark environments
• Illuminated dial allows easy function selection in low-light conditions
• Integrated worklight illuminates confined or dark work areas for improved visibility
• Auto-ranging with data hold, Min/Max, and Rel/Zero functions for efficient diagnostics
• Temperature measurement via included thermocouple, ranging from -40°C to 1000°C
• Ergonomic overmould body with thumb-operated dial for comfortable single-hand use
• Side-mounted test lead holder keeps leads secure on the tool body
• Rear mount compatible with optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
• Rated IP40 for ingress protection and drop-tested to 2m
• Auto power-off extends battery life
• DC polarity indicator included

Specifications

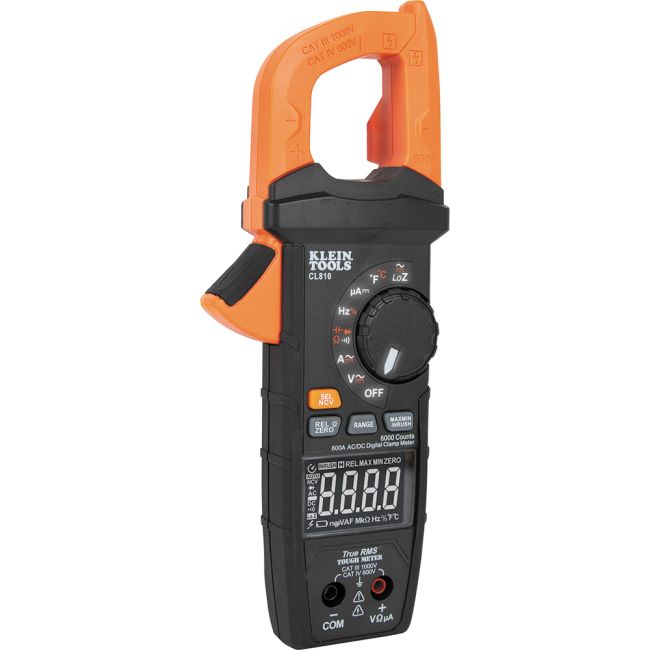

• Model: Klein Tools CL810
• Type: Pro Clamp Meter
• Display: Transflective Reverse-Contrast 6000-Count LCD
• AC Voltage: 1000V
• DC Voltage: 1000V
• Current: 10mA to 600A AC/DC
• Resistance: 60MΩ
• Capacitance: 6000µF
• Frequency: 10Hz to 60kHz
• Temperature Range: -40°C to 1000°C
• DC Micro-Amp Measurement: Yes
• True RMS: Yes
• Auto-Ranging: Yes
• Jaw Size: 3.6cm (1.4")
• Overall Dimensions: 23cm L x 8.8cm W x 4.2cm H
• Material: ABS/Electronics
• Ingress Protection: IP40
• Drop Protection: 2m
• Batteries: 3 x AAA
• Safety Standard: CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA
• UPC: 092644694486

Includes

• 1x CL810 Clamp Meter
• 1x Right-Angle Input Test Leads
• 1x Thermocouple
• 1x Storage Pouch
• 1x Instruction Manual
• 3x AAA Batteries
