Features

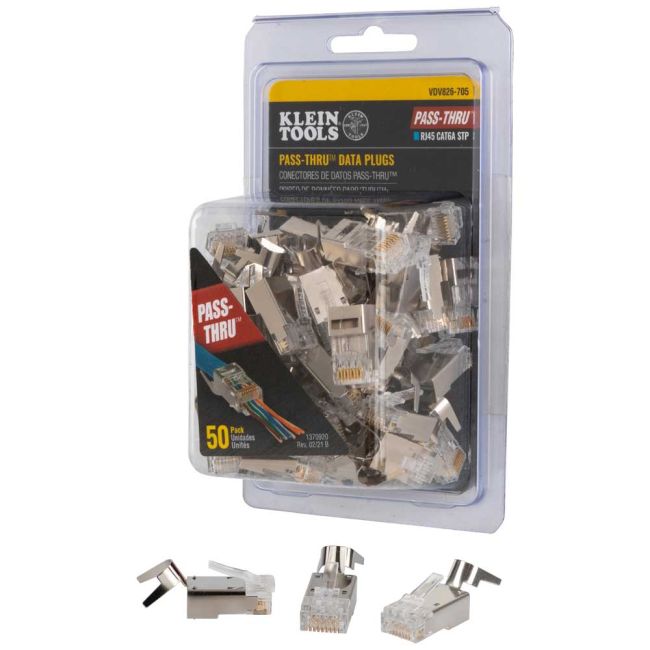

• Klein-exclusive Pass-Thru™ RJ45 connectors ensure quick, reliable terminations for CAT6A STP and thick-jacket CAT6 cables
• Pass-through design allows cable to exit the connector for visual verification of wire alignment
• Shielded (STP) construction supports data transmission in environments with high EMI interference
• Fully compliant with PoE and PoE+ standards for power and data applications
• Category 6A performance in accordance with TIA/EIA-568-B.2
• 50µ-inch gold plating on all contact surfaces ensures superior conductivity and corrosion resistance
• Compatible with solid and stranded conductor wires
• Max conductor diameter: 0.043'' (1.1 mm)
• Designed for use with Klein Tools Pass-Thru™ Modular Crimper (Cat. No. VDV226-110)
• Convenient 50-pack ideal for small to mid-size installations

Specifications

• Type: Modular
• Application: Voice and Data
• Special Features: Pass-Thru™ Technology; Meets All PoE+ Standards
• Material: PVC plastic; Gold-plated contacts
• Connector Type: RJ45
• Cable Type: CAT6A STP and Larger Diameter CAT6
• Position & Contacts: 8P 8C
• Connector Colour: Clear
• Solid Conductor Wire: Yes
• Stranded Conductor Wire: Yes
• Package Quantity: 50
• Overall Length: 0.8'' (2 cm)
• Overall Height: 0.6'' (1.5 cm)
• Overall Width: 0.4'' (1 cm)
• Weight: 6.05 oz (171 g)
• UPC: 092644583919
