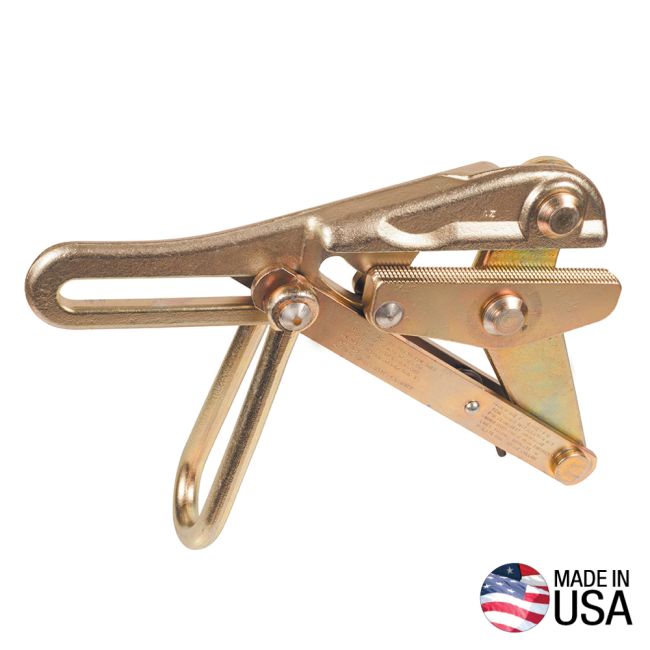

Features

• Aggressive sawtooth jaw profile resists build-up from galvanized coatings on guy strand and EHS cables
• 5'' jaw length increases contact area, reducing cable damage
• Compatible with cable sizes ranging from 0.218'' (5.54 mm) to 0.55'' (13.97 mm)
• Constructed from drop-forged, heat-treated alloy steel for superior strength and durability
• Spring-loaded grip maintains position on the cable
• Locking handle allows the jaw to stay open during placement with a hot stick
• Made in the USA and tested for performance and quality
• Maximum Safe Load: 8000 lbs (3629 kg)

Specifications

• Type: Chicago Grip
• Application: Wire pulling
• Special Features: Sawtooth Jaw Profile Resists Build-up
• Material: Alloy steel
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Cable Diameter: 0.218'' to 0.55'' (5.54 to 13.97 mm)
• Jaw Type: Round
• Tooth Type: Aggressive
• Jaw Length: 5'' (12.7 cm)
• Spring: Yes
• Locking Handle: Yes
• Hot Latch: No
• Swing Latch: No
• Overall Length: 13.3'' (33.8 cm)
• Overall Height: 2.5'' (6.4 cm)
• Overall Width: 7.6'' (19.3 cm)
• Maximum Safe Load: 8000 lb (3629 kg)
• Weight: 6.0 lb (2.7 kg)
• UPC: 092644479458
