Features

• Auto-ranging TRMS technology ensures accurate measurements across varying loads
• Clamp measures AC current; thermocouple probe measures temperature
• Test leads measure AC/DC voltage, resistance, continuity, frequency, capacitance, and test diodes
• Low-Impedance (LoZ) mode helps identify and eliminate ghost or stray voltages
• Durable construction rated for 6.6' (2 m) drop protection
• Safety rated: CAT IV 600V, CAT III 1000V, Class 2 double insulation
• Low-battery indicator and easy-access battery compartment
• Suitable for residential, office, and light-industrial electromagnetic environments
• Operates in temperatures from 0°C to 40°C (32°F to 104°F) and altitudes up to 6562' (2000 m)

Specifications

• Application: Measures AC current
• Special Features: Low-battery indicator
• Batteries: 2 x AAA
• Jaw Size: 1.38" (3.5 cm)
• Drop Protection: 6.6' (2 m)
• Display: 6,000-count LCD
• Functions: Measures AC current, AC/DC voltage, resistance, continuity, frequency, capacitance, temperature; diode testing
• Voltage Range: 1,000 V AC / 1,000 V DC
• Frequency Range: 1 Hz - 500 KHz
• Current Range: 600A
• Capacitance Range: 6000 µF
• Resistance (Ohms): 60 MΩ
• Temperature Range: -14 °F to 1,000 °F (-26 °C to 538 °C)
• Ingress Protection: IP40
• Standard: CAT IV 600 V; CE certified
• Overall Dimensions: 9.09" (23.1 cm) L x 1.55" (3.9 cm) H x 3.81" (9.7 cm) W
• Weight: 11.8 oz (335 g)
• UPC: 092644690150

Includes

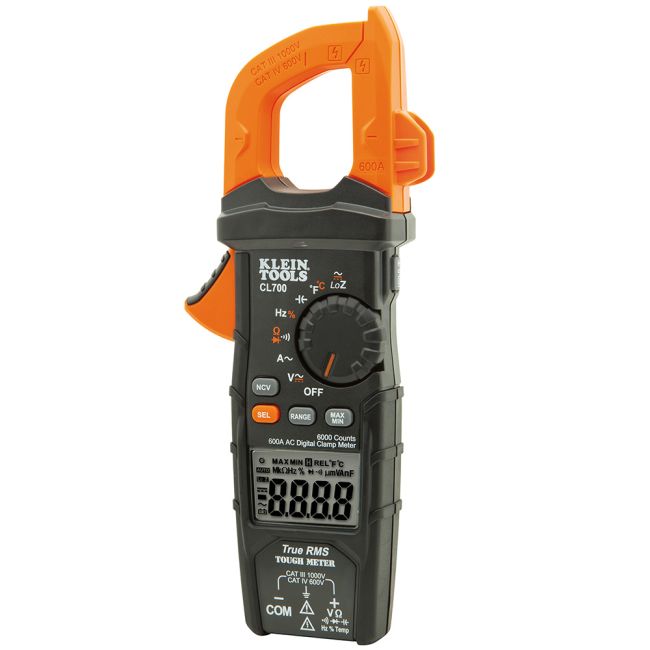

• Digital Clamp Meter
• Carrying case
• Test leads
• Thermocouple with adapter
• Batteries
