Features

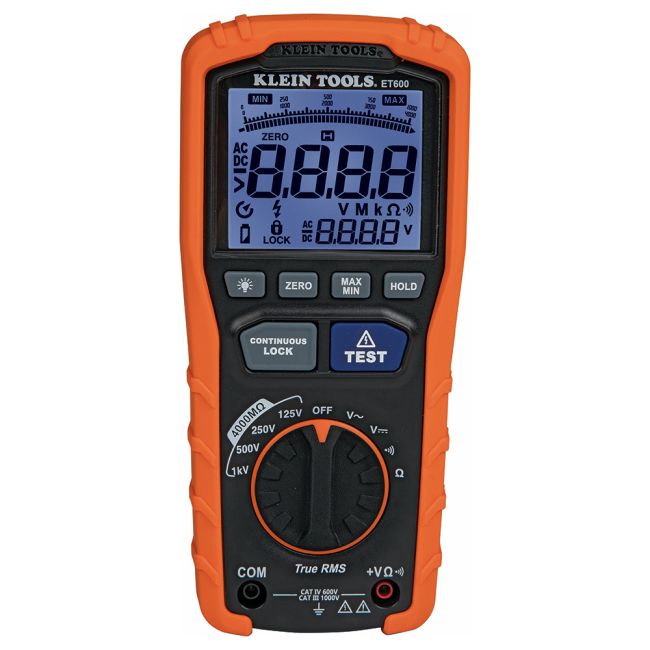

• Voltage Tester tests insulation resistance up to 4000MΩ at 125V, 250V, 500V and 1000V DC
• Megohmmeter with test and lock buttons for simple insulation testing
• Warning alarm and high voltage icon for detection of voltage
• Measures up to 1000V AC/DC, resistance and continuity
• Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
• Backlit display with bar graph, Auto-Power Off, High Voltage, Max/Min and Hold icons
• Low battery indicator with easily replaceable battery and fuse
• Built-in stand and optional magnetic hanger for hands-free operation
• Test verification of conformity to EN61557-1,-2,-4
• CAT IV 600V and CAT III 1000V safety rating
• Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads

Specifications

• Type: Insulation Resistance Tester
• Application: Installation, Troubleshooting and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000V AC/DC, Resistance and Continuity
• Special Features: Lock Button for Insulation Resistance Testing
• Material: ABS, Polycarbonate, Electrical Components
• Batteries: 6 x AA
• Display: 4000 Count LCD
• Colour: Orange/Black
• Functions: Insulation Resistance, Voltage AC/DC, Resistance and Continuity
• Voltage: 125V, 250V, 500V and 1000V DC; 1000V AC/DC
• Ohms (Resistance): 400kΩ
• Standard: CAT IV 600V/CAT III 1000V, EN61557-1, EN61557-2, EN61557-4
• Overall Length (cm): 20.1
• Overall Height (cm): 5.9
• Overall Width (cm): 9.1
• Weight (g): 635

Includes

• Tester
• CAT III/CAT IV Safety Rated Test Leads
• Heavy-Duty Alligator Clip Test Leads
• Batteries
• Carrying Case
• Instruction Manual
