Features

• Klein-exclusive Pass-Thru™ connectors ensure quick and reliable RJ45 terminations for CAT6A and thick-jacket CAT6 cables
• Allows cable to pass through the connector for visual confirmation of wire alignment and proper sequencing
• Compatible with solid and stranded wire; 8 position, 8 contact (8P8C) configuration
• Meets all Power Over Ethernet (PoE and PoE+) standards
• Category 6A performance in accordance with TIA/EIA-568-B.2
• Max conductor diameter: 0.043'' (1.1 mm)
• Requires a pass-through crimping tool, such as Klein Tools VDV226-110
• 50µ-inch gold plating on all contact surfaces for reliable conductivity and durability

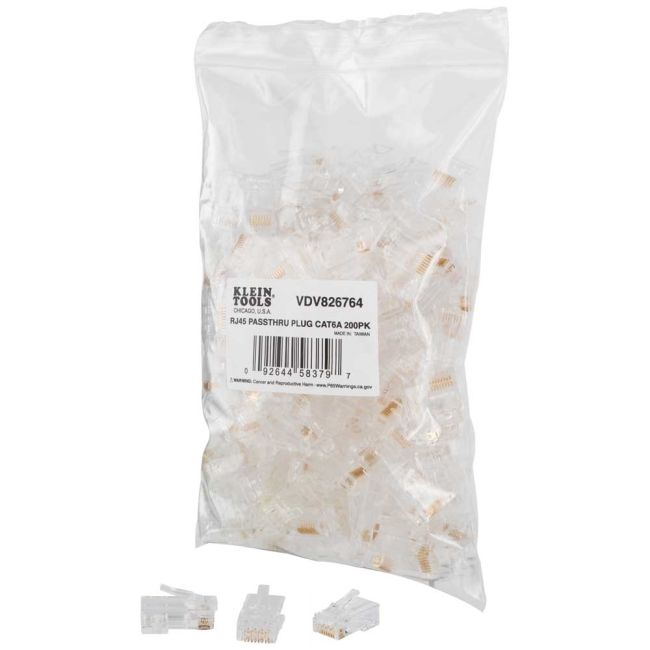

• Supplied in a convenient 200-pack for large installations

Specifications

• Type: Modular
• Application: Voice and Data
• Special Features: Pass-Thru™ Technology; Meets All PoE+ Standards
• Material: PVC plastic; Gold-plated contacts
• Connector Type: RJ45
• Cable Type: CAT6A UTP and Larger Diameter CAT6
• Position & Contacts: 8P 8C
• Connector Colour: Clear
• Solid Conductor Wire: Yes
• Stranded Conductor Wire: Yes
• Package Quantity: 200
• Overall Length: 0.875'' (2.2 cm)
• Overall Height: 0.453'' (1.2 cm)
• Overall Width: 0.094'' (0.2 cm)
• Weight: 9.34 oz (265 g)
• UPC: 092644583797
