Features

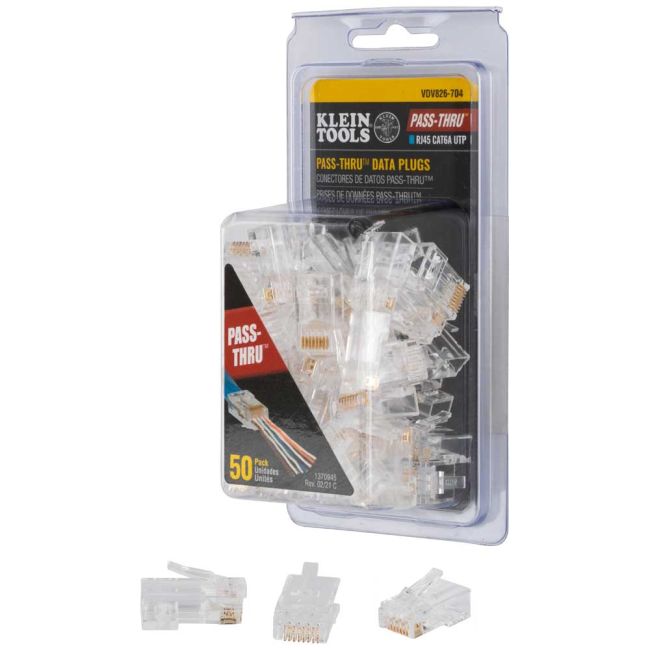

• Klein-exclusive Pass-Thru™ RJ45 connectors deliver fast, reliable terminations for CAT6A UTP and large-diameter CAT6 cables
• Pass-through design allows cable to exit the connector for visual wire alignment confirmation before crimping
• Fully compliant with PoE and PoE+ standards, supporting power and data transmission
• Category 6A performance in accordance with TIA/EIA-568-B.2
• 50µ-inch gold plating on contact surfaces for optimal connectivity and corrosion resistance
• 8 position, 8 contact (8P8C) modular plug works with both solid and stranded wire
• Max cable diameter: 0.043'' (1.01 mm)
• Designed for use with Klein Tools Pass-Thru™ Modular Crimper (Cat. No. VDV226-110)
• Convenient 50-pack for small to medium data cabling jobs

Specifications

• Type: Modular
• Application: Data
• Special Features: Pass-Thru™ Technology; Meets All PoE+ Standards
• Material: PVC plastic; Gold-plated contacts
• Connector Type: RJ45
• Cable Type: CAT6A UTP and Larger Diameter CAT6
• Position & Contacts: 8P 8C
• Connector Colour: Clear
• Solid Conductor Wire: Yes
• Stranded Conductor Wire: Yes
• Package Quantity: 50
• Overall Length: 0.875'' (2.2 cm)
• Overall Height: 0.453'' (1.2 cm)
• Overall Width: 0.094'' (0.2 cm)
• Weight: 4.8 oz (136 g)
• UPC: 092644583780
