Features

• Tests and measures data, phone, and coax cables for efficient installation and fault troubleshooting
• Full-color backlit display with internal memory for storing, downloading, and managing test reports
• Measures cable length up to 2000 ft (610 m) and locates distance to fault using TDR technology
• Generates both digital and analogue tones for cable tracing (requires VDV500-223, sold separately)
• Locates and identifies up to 20 locations with included remotes for streamlined cable management
• Detects network capabilities and connection speeds up to 10 Gbps
• Performs hub blink testing to identify cable connections on network devices
• Supports POTS testing and detection of active/passive PoE

Specifications

• Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
• Application: Cable Testing
• Special Features: Measures Cable Length, Backlit LCD, Hub Blink
• Material: Plastic and Metal
• Overall Length: 8'' (20.3 cm)
• Overall Height: 1.5'' (3.8 cm)
• Overall Width: 4'' (10.2 cm)
• Batteries: 3× AA alkaline
• Battery Life: Active: 15 hrs; Standby: 1 yr
• Drop Protection: 6.6' (2 m)
• Supported Remotes: 41
• Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
• Display: Backlit LCD
• Multiple Style Tone Generator: Yes (5), requires VDV500-223 (sold separately)
• Cable Type: DATA: Shielded/Unshielded CAT6; COAXIAL: RJ11, RJ12, RJ45
• Cable Identification: Includes 20 Remote Locators
• Testing & Measurement Types: Ethernet/Data and Coaxial
• Accuracy: ± (2% + 3' or 1 m) with Known VoP and Consistent Cable Parameters
• Weight: 15.8 oz (447 g)
• UPC: 092644583957

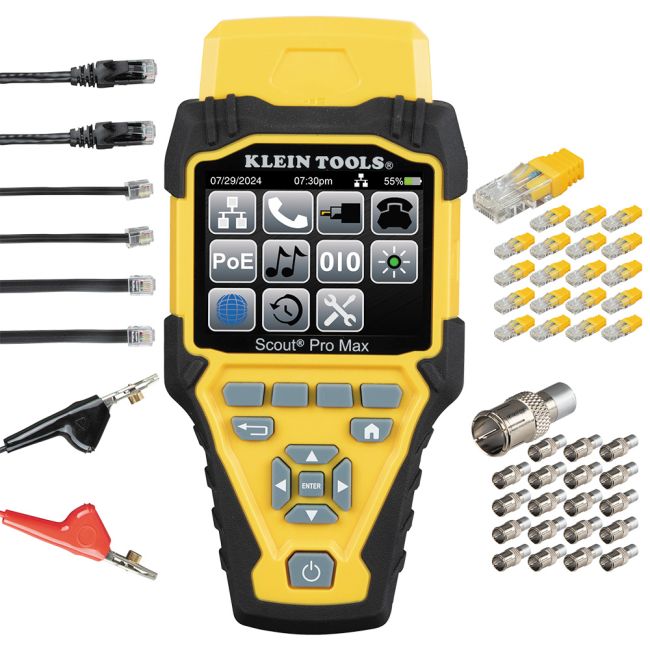

Includes

• Scout® Pro Max Tester
• Self-Storing Remote
• RJ45 CAT6 to RJ45 CAT6 Cable (×2)
• RJ11 to RJ11 Cable (×2)
• RJ12 to RJ12 Cable (×2)
• Female Coax-F to Angled-Bed-of-Nails Cable
• RJ45 LanMap™ Location ID Remotes (1–20)
• F-Connector CoaxMap™ Location ID Remotes (1–20)
• Female F-Barrel Connector
• USB-C to USB-A Cable
• Carrying Case
