Features

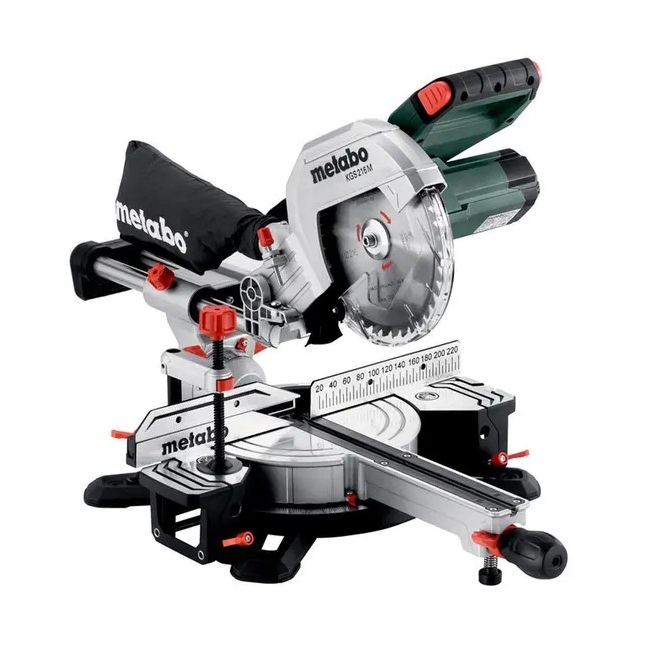

• Mobile M-class crosscut and mitre saw with sliding function, designed for precision and ease of use.
• Precision Cut Line (PCL) ensures an accurate shadow cutting line without the need for re-adjustment, thanks to a cleverly positioned LED.
• Sliding function allows for large cutting capacities, accommodating wide workpieces.
• Turntable enables fast and precise angle adjustments with stop points for common angles.
• Saw blade inclination range from -2° to 47°, making it suitable for undercuts.
• Robust die-cast aluminium construction ensures durability for high-demand applications.
• Effective dust extraction with an integrated dust scoop for cleaner operation.
• Soft start mechanism prolongs the life of the motor and drive system.
• Extendable and removable table width extensions support extra-long workpieces.
• Quick-action clamp securely fixes workpieces from the top or front for stability.
• Depth guide simplifies the creation of grooves.
• Scales and operating elements are easily visible and intuitively adjustable from the working position.
• Ergonomic handle areas for comfortable carrying with one or two hands.

Specifications

• Dimensions: 710 x 476 x 512 mm (27.95 x 18.74 x 20.15 inches)
• Support Surface: 345 x 730 mm (13 1/2 x 28 3/4 inches)
• Maximum Cutting Width at 90°/45°: 305 / 215 mm (12 / 8 1/2 inches)
• Maximum Cutting Depth at 90°/45°: 70 / 40 mm (2 3/4 / 1.57 inches)
• Cutting Capacity at 90°/90°: 305 x 70 mm (12 x 2 3/4 inches)
• Cutting Capacity at 45°/45°: 215 x 40 mm (8 1/2 x 1.57 inches)
• Turntable Setting Left/Right: 50° / 50°
• Saw Blade Tilt Left/Right: 47° / 2°
• Saw Blade: 216 x 30 mm (8 1/2 x 1.181 inches)
• Rated Input Power (S1 100%): 1200 W
• Rated Input Power (S6 20%): 1500 W
• No-Load Speed: 5000 rpm
• Speed at Rated Load: 3750 rpm
• Cutting Speed: 57 m/s (187 ft/min)
• Weight: 13.4 kg (29.54 lbs)
• Cable Length: 2 m (7 ft)
