Features

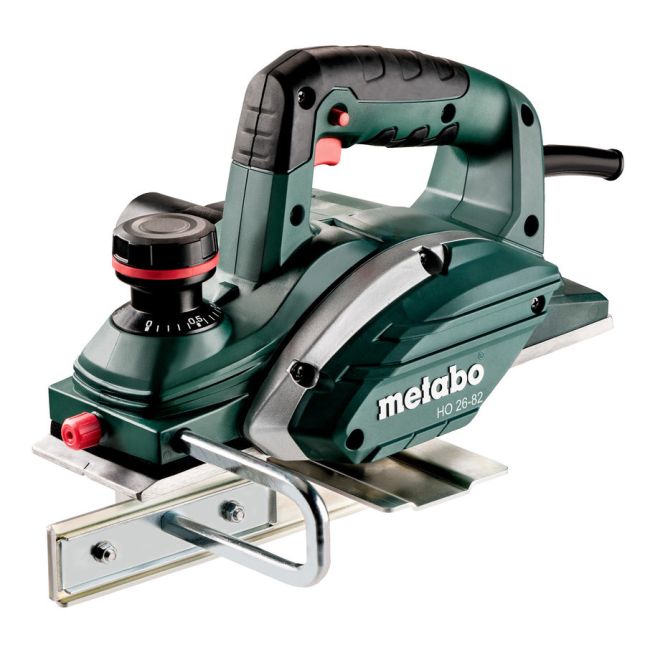

• Light, compact universal planer for planing, rebating and chamfering
• Adjustable planer depth and notch depth
• Aluminium die cast and milled cut planer base with V-groove for easy chamfering
• Parallel guide for precise guiding of the planer
• Grip area with non-slip soft-grip surface
• Extraction possibility by means of connecting an all-purpose vacuum cleaner
• Angled chip ejection adapter for controlled ejection of the wood shavings
• Easy to empty textile dust bag for working without extraction facilities
• Strap on the planer base for stopping the machine and to protect the work piece
• Easy blade change of the robust reversible carbide planer blades
• Characteristics
• Planing width 82 mm / 3.2 "
• Adjustable planing depth 0 - 2.6 mm // 0 - 0.1 "
• Maximum notch depth 9 mm
• No-load speed 17000 rpm
• Rated input power 620 W
• Output power 360 W
• Revolutions at rated load 11200 rpm
• Length of planer base 295 mm / 11.6 "
• Weight (without power cable) 2.7 kg
• Cable length 4 m
• Vibration
• Planing soft wood 1.7 m/s
• Uncertainty of measurement K 1.5 m/s
• Noise emission
• Sound pressure level 86 dB (A)
• Sound power level (LwA) 97 dB(A)
• Uncertainty of measurement K 3 dB(A)
