Features

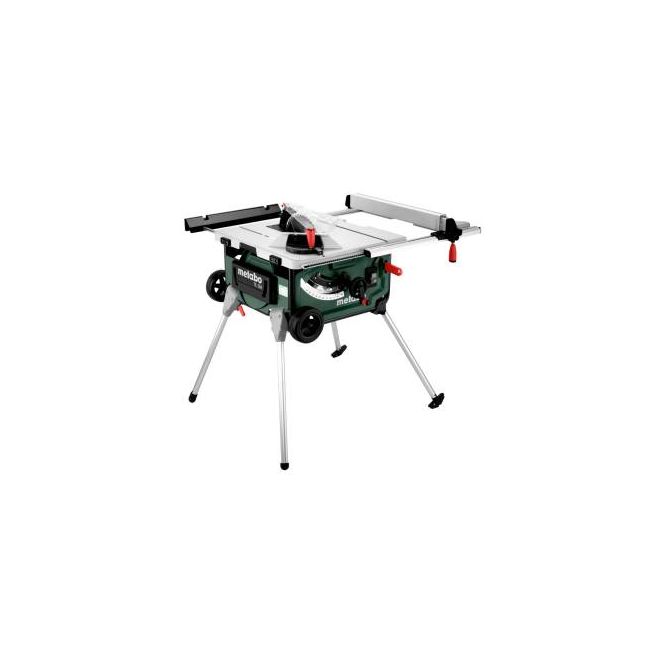

• Extremely light table saw with trolley function for more mobility on the construction site
• Integrated stand made from stable die-cast aluminium (patented): unfolded in a matter of seconds with secure stand
• Very compact with folded stand for comfortable transport and space-saving storage
• Second working height for working near ground level
• Anti-twist tubular frame construction for highest demands on the building site and during installations
• Cables and all add-on components for transport can be stored on the casing
• Powerful motor with electronic overload protection
• Motor brake for quick stop of the saw blade in 3 seconds
• Restart protection: prevents unintentional start-up after power supply interruption
• Soft start for long service life of motor and drive
• Precise parallel guide with double clamping and quick fastening
• Precise saw blade inclination via gear guide
• Automatic resetting to 0 - 45 degrees after undercuts
• Easy saw blade change with spindle lock
• Splitting wedge can be lowered without tools for hidden cuts and transport
• Precise, extendable table width extension for extra large working surfaces
• Characteristics

Specifications

• Max. support surface 970 x 995 mm / 38 3/16 x 39 3/16 "
• Working height 850 / 355 mm // 33 1/2 / 14 "
• Cutting height 0 - 87 mm // 0 - 3 3/8 "
• Maximum cutting height 90/45 degrees87 / 54 mm // 3 7/16 / 2 "
• Maximum cutting width at parallel guide/rip fence 630 mm / 24 3/4 "
• Maximum material width at mitre fence 200 mm / 7 7/8 "
• No-load speed 4200 rpm
• Cutting speed 56 m/s / 184 ft/s
• Saw blade 254 x 30 mm / 10 x 1.181 "
• Saw blade swivel range -1.5 - 46.5 degrees
• Rated input power 2000 W
• Rated input power S1 100% 1700 W
• Rated input power S6 20% 2000 W
• Cable length 3.1 m / 10 ft
• Noise emission
• Sound pressure leve l99 dB(A)
• Sound power level (LwA) 112 dB(A)
