Features

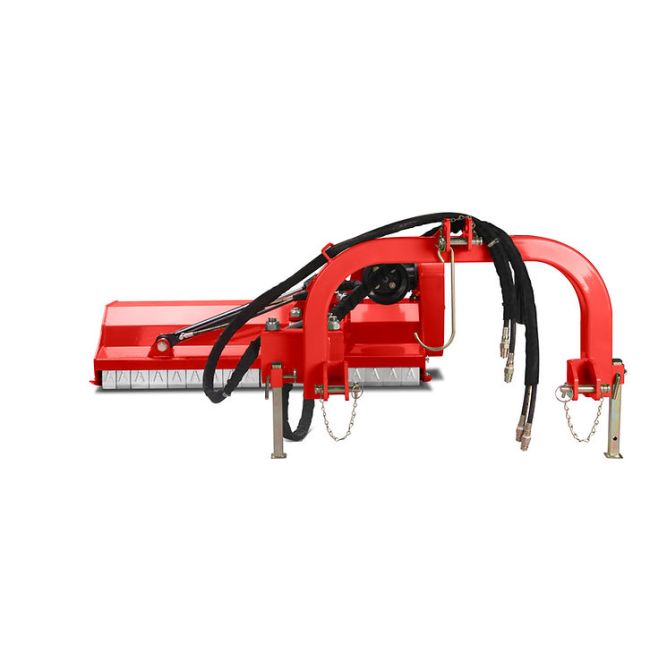

• Heavy-duty 1400mm verge flail mower with hydraulic side shift and tilt system
• Designed for tough grasses, bushes and pruning debris up to 3cm diameter
• Hydraulic offset and multi-angle tilt for creek banks, dam walls, ditches and roadside maintenance
• 24 forged hammer blades for efficient mulching of dense vegetation and debris
• Heavy-duty powder-coated steel construction for durability in harsh conditions
• Light offset-inline design for improved reach and versatility
• Intake safety flaps for added operator protection
• Rear discharge roller for smooth operation and consistent finish
• Oil bath gearbox for reliable long-term performance
• Durable PTO safety cover included
• Suitable for Category 1 three-point linkage tractors
• Recommended for tractors 30–65HP
• PTO shaft 6 spline 1-3/8” with safety shear bolt included

Specifications

• Model: FIEFAGL145
• Cutting Width: 1400mm
• Cutting Height: 0–50mm
• Rotor Diameter: 108mm
• Number of Hammers: 24
• Number of Drive Belts: 4
• Maximum Rear Extension: 1420mm
• Maximum Side Extension: 2010mm
• Upward Tilt: 0–90°
• Downward Tilt: 0–55°
• PTO Speed: 540 r/min
• Tractor Power: 30–65HP
• Weight: 280kg
• Assembled Dimensions: 1665 x 925 x 1035mm
• Shipping Dimensions: 1620 x 800 x 600mm

Includes

• PTO Shaft 6 Spline 1-3/8” with Safety Shear Bolt
