Features

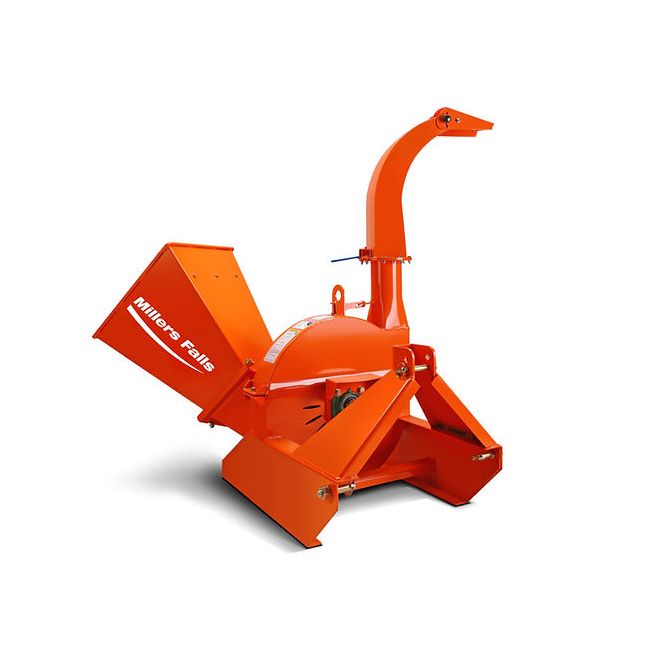

• 6” (150mm) PTO-driven wood chipper designed for tractors with three-point linkage
• Heavy-duty fabricated steel construction for strength and long-term durability
• Gravity self-feeding system allows material to be pulled into the rotor by the chipping blades
• Large 760mm diameter rotor with 82kg rotor weight for high tip speed and powerful chipping performance
• Four precision-cut, hardened reversible tool steel knives for extended service life
• Adjustable bed blade for accurate cutting performance
• Integrated blower paddles with twig breakers for improved chip consistency and discharge distance
• 360° rotating discharge chute with adjustable top deflector for controlled chip direction
• Easily accessible anvil and blades for quick and simple maintenance
• Powered via supplied shear pin PTO shaft for smooth and reliable power transmission
• Compatible with 40–85HP tractors (rated PTO RPM 540–1000)

Specifications

• Maximum Chipping Capacity: 150mm (6”)
• Overall Dimensions: 1270 × 1320 × 1880 mm
• Chipper Housing Opening: 165 × 255 mm
• Hopper Opening: 635 × 635 mm
• Rotor Size: 760 mm
• Number of Rotor Knives: 4
• Rotor Weight: 82 kg
• Feeding System: Gravity Self Feed
• Discharge Hood Rotation: 360°
• Discharge Hood Height: 1880 mm
• Rated PTO RPM: 540–1000
• Power Required: 40–85HP
• Weight: 350 kg

Includes

• Shear Pin PTO Shaft
