Features

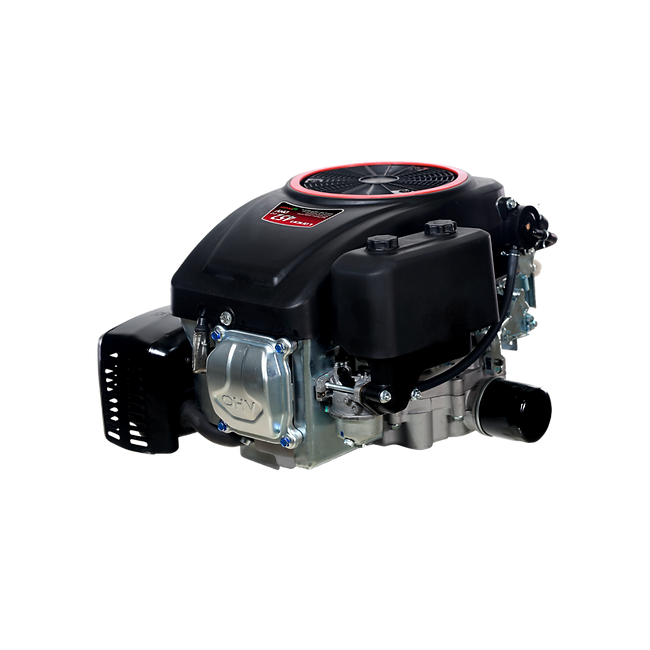

• 16HP air-cooled, 4-stroke OHV petrol engine with vertical shaft and electric start
• Optimized balance system reduces vibration and ensures more stable operation
• Overhead valve (OHV) design lowers engine temperature for improved efficiency and durability
• Secondary oil filtration system enhances lubrication, reduces wear, and prolongs engine life
• Cast iron cylinder for better lubrication, wear resistance, and engine longevity
• Metal cam and forged crankshaft provide reliability and heavy-duty performance
• Ideal for lawn mowers and compatible with other vertical-shaft applications
• Shaft Diameter: 1" with 80mm length for standard compatibility

Specifications

• Brand: Millers Falls
• Model: QPVS16ES
• Engine Type: 16HP, air-cooled, 4-stroke, OHV, single-cylinder
• Combustion System: Spark ignition
• Cylinder: 1 – cast iron
• Displacement: 452cc
• Bore & Stroke: 92 x 68mm (Bore/Stroke Ratio: 1.353)
• Operating Speed Range: 2800 – 3200 RPM
• Maximum Torque: at 2600 RPM
• Compression Ratio: 8.8
• Fuel Type: Petrol
• Cooling System: Forced air
• Overall Dimensions (excluding shaft): 415 x 442 x 315 mm
• System Voltage: 12V
• Shipping Dimensions: 72 x 55 x 56 cm
• Shipping Weight: 45kg
