Features

• Powered by a reliable FAW 4DW91-29D 4-cylinder diesel engine for dependable performance.
• Fitted with a quality Stamford Style OEM 4-pole brushless alternator with AVR for stable power output.
• Delivers up to 24 hours of continuous power at prime load with a 53L double-bunded fuel tank.
• Low 1500 RPM engine operation ensures smoother performance and improved longevity.
• Fuel-efficient consumption at 2.93 litres per hour (prime load).
• Silenced, sound-deadened canopy operating at just 67 dBA at 7 metres.
• Oversized 50°C-rated radiator designed for high ambient Australian temperatures.
• Robust, heat-insulated, lockable cabinet with powder-coated finish for outdoor use.
• Fork slippers and lifting hooks for easy transport and positioning.
• Earth leakage protection with Australian Standard IP67 RCBOs and IP66 outlets.
• RCBO-protected hardwire terminals with additional safety cover.
• Smartgen 6120 controller for simple monitoring and control.
• 2-wire remote start capability with ATS connection socket and 4G remote start compatibility.
• Oil pressure shutdown, over-temperature shutdown, and over-current protection for added safety.
• Emergency E-stop, shunt relay auto stop, and lockable battery isolator included.
• Interior cabinet light with switch for maintenance convenience.
• Mine site ready with bunded fuel tank and drain plugs for water, oil, and diesel.
• Australian compliant wiring with M.E.N link and site-safe lockable canopy.

Specifications

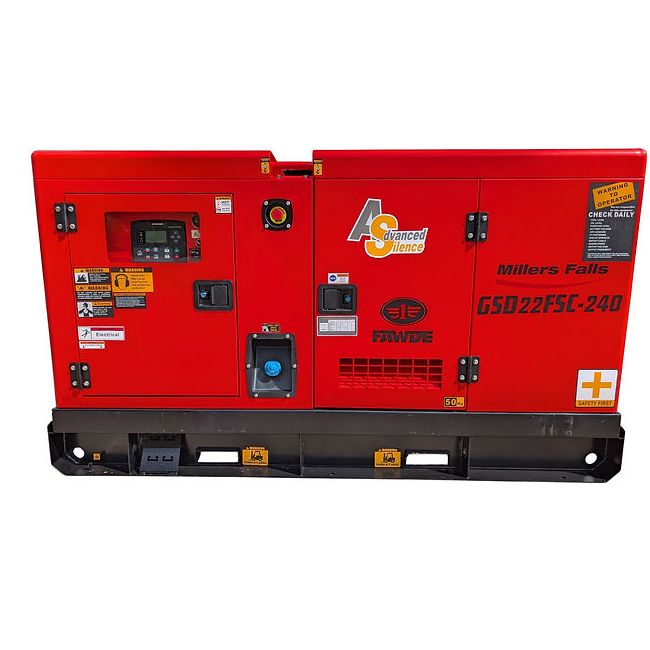

• Model: GSD22FSC-240
• Prime Power: 16 kW / 16 kVA, 240V, 67 Amps
• Standby Power: 17.6 kW / 17.6 kVA
• Power Factor: 1
• Phase: Single Phase 240V
• Frequency: 50 Hz
• Engine: FAW 4DW91-29D, 4 Cylinder Diesel
• RPM: 1500/min
• Cooling System: Water cooled with 50°C-rated radiator
• Alternator: Stamford Style OEM 4 Pole Brushless with AVR
• Starting System: 12V electric start with heavy-duty battery and charger
• Controller: Smartgen 6120
• Remote Start: 2-wire remote start capable
• Over Temperature Protection: Included
• Over Current Protection: Included
• Low Oil Protection: Included
• Lockable Battery Isolator: Included
• Emergency Stop: Included
• Shunt Relay Auto Stop: Included
• Noise Level: 67 dBA at 7 metres
• Running Time: Up to 24 hours at prime load
• Fuel Tank Capacity: 53 Litres with fuel gauge
• Fuel Consumption: 2.93 L/hour at prime load
• Cabinet: Lockable, fully sound-deadened, powder-coated for external use
• Single Phase Outlets: 3 x 15 Amp IP66
• Hardwire Terminals: Included
• RCD / RCBO: Australian Standard IP67 enclosed
• Dry Weight: 870 kg
• Dimensions: 2200mm (L) x 1000mm (W) x 1230mm (H)
