Features

• Heavy-duty 2000kg load capacity ideal for large-scale material handling
• Adjustable lifting height from 90mm to 1600mm for versatile stacking applications
• Durable steel construction ensures strength and long-term reliability
• Reliable hydraulic system for smooth lifting and controlled lowering
• Controllable descending speed enhances operational safety
• Adjustable fork outside distance from 240mm to 950mm accommodates various pallet sizes
• Designed for use on flat surfaces in warehouses and industrial environments
• Stable front and rear wheels ensure smooth movement and positioning

Specifications

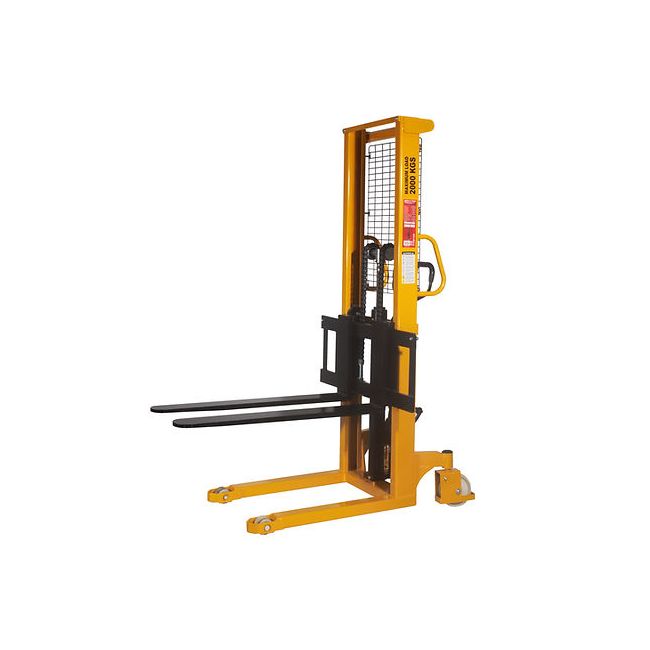

• Model: WH7617
• Capacity: 2000kg
• Lifting Height: 90mm – 1600mm
• Fork Length: 1100mm
• Fork Width: 120mm
• Fork Outside Distance: 240mm – 950mm
• Lifting Speed: ≥15mm/time
• Overall Dimensions: 1620 x 1000 x 2020mm
• Front Wheel Diameter: Φ80 x 60mm
• Rear Wheel Diameter: Φ180 x 50mm
• Self Weight: 255kg
• Hydraulic Oil: ISO VG32, 3.0L capacity
