Features

• Designed to suit most tractors with a 3-point linkage connection.
• Powerful 25-ton maximum splitting force for farm, commercial, and heavy-duty firewood preparation.
• Heavy-duty hydraulic cylinder measuring 105mm diameter x 584mm stroke for strong, consistent performance.
• Auto return control valve with up to 25GPM maximum flow for smooth, efficient operation and reduced cycle times.
• Dual working positions – operates in both horizontal and vertical configurations for added versatility.
• Handles logs up to 610mm (24") in length.
• Includes 3500mm hydraulic hoses with ISO A 12 NPT M quick coupling.

Specifications

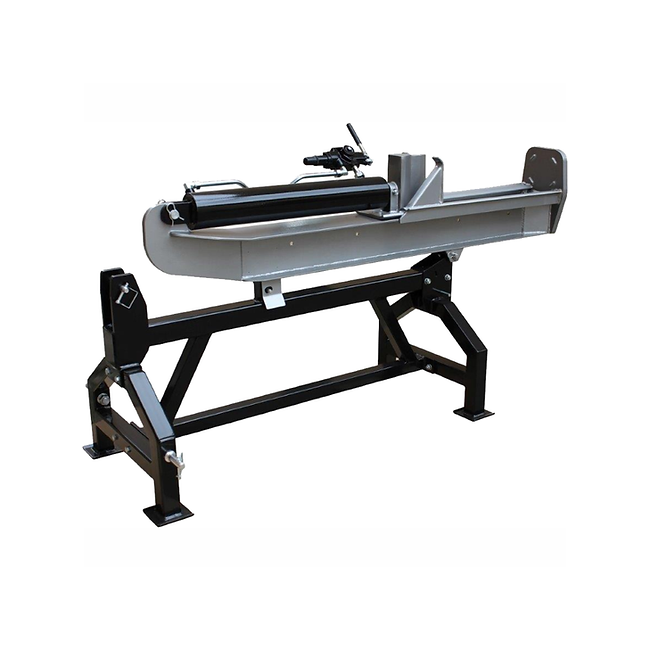

• Model: LS25-3PT
• Maximum Splitting Force: 25 Ton
• Hydraulic Cylinder Size: 105mm diameter x 584mm stroke
• Maximum Log Length: 610mm (24")
• Working Positions: Horizontal and Vertical
• Package Dimensions: 191 x 48 x 68 cm
• Package Weight: 219 kg
