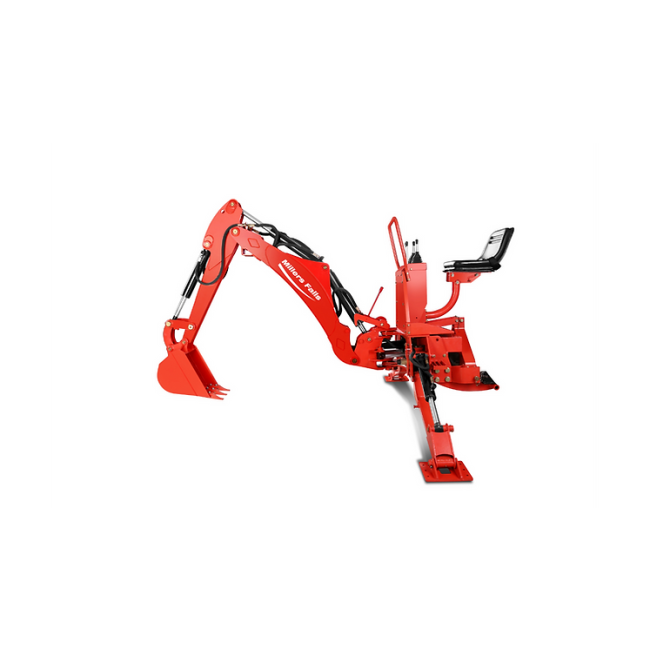

Millers Falls 300MM Tractor Backhoe Attachment FIBK215
Tractor backhoe attachment designed for 25–50HP tractors with Category I & II three-point linkage. Supplied with independent PTO-driven hydraulic pump and oil tank, eliminating the need for tractor hydraulic remotes. Gearbox compatible with 540 RPM PTO output for efficient hydraulic performance. Italian-made twin joystick controls for precise and smooth operation from an independent control station. High-performance hydraulic system delivering strong digging force for medium to heavy-duty tasks. CNC laser-cut components ensure precise alignment and extended service life of cylinders and bearings. Italian-made hydraulic valves provide durability, reliability and smooth control. Replaceable oil filter included for complete hydraulic system protection. 180° boom swing left and right for versatile digging capability. Left and right stabiliser legs operate independently or simultaneously as required. 180° bucket rotation for enhanced maneuverability and efficiency. Adjustable tilt seat for improved operator comfort. Durable powder-coated finish for long-lasting protection. Compact transport size allows the unit to remain mounted during road travel. Suitable for landscaping, construction, farming, excavation and light demolition work. Model: BK215A. Suitable Tractor Power: 25–50HP. Hydraulic Pressure: 160 Bar. Digging Depth (Two Foot Flat Bottom): 2200mm. Reach from Centre Line of Swing Pivot: 3200mm. Loading Height: 1850mm. Maximum Levelling Angle: 10°. Swing Arc: 180°. Transport Height: 2180mm. Transport Overhang: 1230mm. Bucket Rotation: 180°. Stabiliser Spread (Down Position): 2110mm. Stabiliser Spread (Up Position): 1350mm. Angle of Departure: 21°. Bucket Digging Force: 1175kg. Dipper Stick Digging Force: 895kg. Standard Bucket Width: 12” (300mm). Weight: 415kg. Packaging Size: 228 x 70 x 105 cm.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Tractor backhoe attachment designed for 25–50HP tractors with Category I & II three-point linkage
- Supplied with independent PTO-driven hydraulic pump and oil tank, eliminating the need for tractor hydraulic remotes
- Gearbox compatible with 540 RPM PTO output for efficient hydraulic performance
- Italian-made twin joystick controls for precise and smooth operation from an independent control station
- High-performance hydraulic system delivering strong digging force for medium to heavy-duty tasks
- CNC laser-cut components ensure precise alignment and extended service life of cylinders and bearings
- Italian-made hydraulic valves provide durability, reliability and smooth control
- Replaceable oil filter included for complete hydraulic system protection
- 180° boom swing left and right for versatile digging capability
- Left and right stabiliser legs operate independently or simultaneously as required
- 180° bucket rotation for enhanced maneuverability and efficiency
- Adjustable tilt seat for improved operator comfort
- Durable powder-coated finish for long-lasting protection
- Compact transport size allows the unit to remain mounted during road travel
- Suitable for landscaping, construction, farming, excavation and light demolition work
Specifications
- Model: BK215A
- Suitable Tractor Power: 25–50HP
- Hydraulic Pressure: 160 Bar
- Digging Depth (Two Foot Flat Bottom): 2200mm
- Reach from Centre Line of Swing Pivot: 3200mm
- Loading Height: 1850mm
- Maximum Levelling Angle: 10°
- Swing Arc: 180°
- Transport Height: 2180mm
- Transport Overhang: 1230mm
- Bucket Rotation: 180°
- Stabiliser Spread (Down Position): 2110mm
- Stabiliser Spread (Up Position): 1350mm
- Angle of Departure: 21°
- Bucket Digging Force: 1175kg
- Dipper Stick Digging Force: 895kg
- Standard Bucket Width: 12” (300mm)
- Weight: 415kg
- Packaging Size: 228 x 70 x 105 cm
- MPN
- FIBK215
- Manufacturer
- Millers Falls
