Features

• Powered by a 6.5HP 4-stroke OHV air-cooled petrol engine with electric key start and recoil backup.
• Delivers a powerful 30-ton splitting force for heavy-duty hardwood applications.
• Heavy-duty 100mm x 580mm hydraulic cylinder for fast and efficient pressure build-up.
• 2-stage 11 GPM gear pump for maximum splitting efficiency.
• 7” (178mm) hardened steel wedge for superior durability and performance.
• Fast 17-second split and return cycle time to improve productivity.
• Automatic return control valve retracts ram when lever is released.
• Operates in both horizontal and vertical positions for versatile log handling.
• Hydraulic lifting table for easy loading and unloading of heavy logs.
• Hydraulic lifting table capacity of 150kg.
• Handles logs up to 610mm (24”) in length and 305mm (12”) in diameter.
• 16” pneumatic wheels and 8” x 2” jockey wheel for easy mobility.
• 50mm cast steel coupling suitable for towing up to 72 km/h.
• 12V 9AH maintenance-free lead-acid battery included.

Specifications

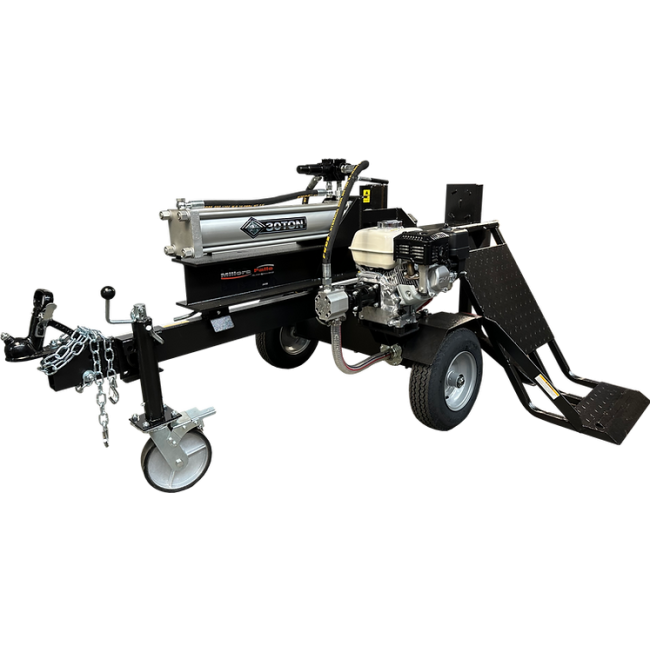

• Model: LS30LTESBD
• Engine: 6.5HP, 4-Stroke, OHV, Air Cooled Petrol, Electric Start
• Maximum Splitting Force: 30 Ton
• Hydraulic Cylinder Size: 100mm diameter x 580mm stroke
• Hydraulic Oil Supplied: 10 Litres ISO 46
• Oil Tank Capacity: 12 Litres
• Wedge Height: 7” (178mm)
• Cycle Time: 17 seconds
• Maximum Log Length: 610mm (24”)
• Maximum Log Diameter: 305mm (12”)
• Hydraulic Lifting Table Capacity: 150kg
• Jockey Wheel: 8” (200mm) x 2” (50mm)
• Pneumatic Wheels: 16”
• Maximum Recommended Towing Speed: 72 km/h
• Package Dimensions: 187 x 52 x 93 cm
• Package Weight: 323 kg
