Features

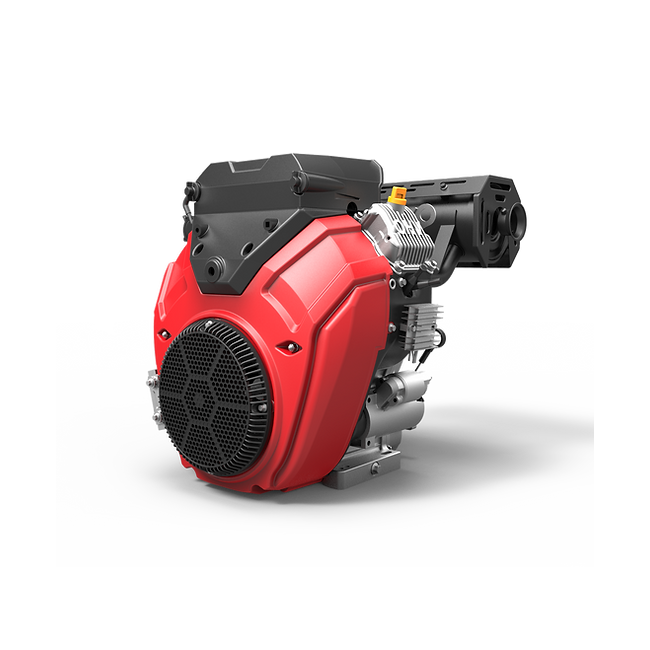

• 34HP air-cooled, 4-stroke V-Twin petrol engine with horizontal shaft and electric key start
• 999cc displacement delivering reliable high power for demanding applications
• Overhead valve (OHV) design ensures lower operating temperatures, improved fuel efficiency, and extended engine life
• Transistorised magneto ignition system for easy starting and stable performance
• Low oil alert system automatically shuts down the engine to prevent damage
• Cast iron cylinder sleeve, metal cams, and forged crankshaft for enhanced durability and wear resistance
• Full pressure lubrication with spin-on oil filter and oil cooler radiator for optimal performance
• Heavy-duty air filter assembly and supplied muffler included
• Suitable for pressure pumps, commercial mowers, chippers, water pumps, construction and agricultural machinery

Specifications

• Brand: Millers Falls
• Model: QPE34ES
• Engine Type: Air-cooled, 4-stroke, V-Twin, horizontal shaft
• Displacement: 999cc
• Bore & Stroke: 90 x 78.5mm
• Rated Speed: 3600 RPM
• Maximum Power Output: 24 kW @ 2800 RPM
• Maximum Torque: 70 Nm @ 2800 RPM
• Idle Speed: 1600 ± 160 RPM
• Shaft Diameter: 36.4mm (1 7/16”) threaded with keyway
• Shaft Length: 108mm
• Oil Capacity: 2.5L
• Net Dimensions: 500mm (L) x 580mm (W) x 570mm (H)
• Net Weight: 60kg
• Package Dimensions: 67cm x 58cm x 62cm
• Package Weight: 69kg
