Features

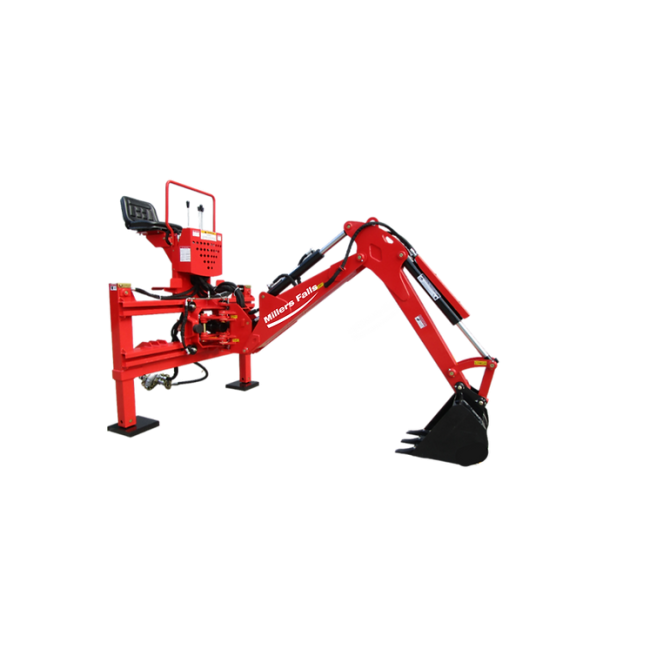

• Side-shifting tractor backhoe attachment designed for 55–90HP tractors with Category I/II three-point linkage
• Hydraulic side shift with lock function allows digging closer to fence lines and buildings
• Independent PTO-driven hydraulic system with integrated oil tank and gear pump
• Gearbox compatible with 540 RPM PTO output for efficient power transfer
• Precision Italian-made control valves and monoblock distributor (40 lt/min flow rate) for smooth fingertip control
• Four-joystick independent control station for precise and simple operation
• Dual swing cylinders and 180° boom rotation for fast, powerful and flexible digging
• High-strength steel frame with reinforced joints for increased durability and downforce
• CNC laser-cut components ensure accurate alignment and extended component lifespan
• Hydraulic hose fittings rated up to 3000 PSI for reliable performance
• Replaceable oil filter included for complete hydraulic system protection
• Stabiliser legs operate independently or simultaneously as required
• Adjustable cushioned seat for operator comfort during extended use
• Durable powder-coated finish for long-term protection
• Suitable for landscaping, trenching, excavation, agriculture and light demolition work

Specifications

• Model: FIBK260A
• Suitable Tractor Power: 55–90HP
• Hydraulic Pressure: 190 Bar
• Oil Tank Capacity: 46 L
• Digging Depth: 2600mm
• Maximum Height: 2850mm
• Maximum Working Radius: 2800mm
• Loading Height: 1990mm
• Transport Height: 1880mm
• Height of Support Leg: 310mm
• Offset Distance from Middle Line: 706mm
• Rotation Angle: 180°
• Sideshift Moving Width: 1500mm
• Standard Bucket Width: 16” (400mm)
• Bucket Digging Force: 1400kg
• Dipper Stick Digging Force: 1200kg
• Tooth Tearing Resistance: 2800kg
• Weight: 580kg
• Packaging Size: 1665 x 960 x 1255 mm
