Features

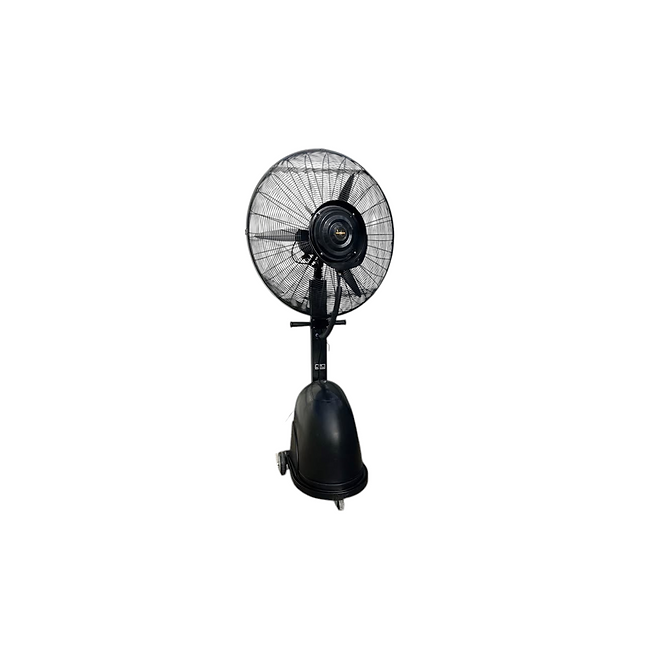

• 750mm centrifugal misting fan designed for industrial and commercial cooling applications
• Integrated misting system delivers a fine cooling mist to effectively reduce ambient temperatures by 2–8°C
• Powerful 260W motor with 3 adjustable speed settings for customised airflow control
• High airflow output of 155m³/min for strong and consistent air circulation
• Adjustable atomization rate from 0–6kg/h for optimal mist performance
• Large 49L water tank allows extended operation with fewer refills
• Water consumption of 8–10L per hour for efficient cooling performance
• Wide cooling coverage with an effective distance of up to 10 metres
• Energy-efficient operation for cost-effective temperature control

Specifications

• Model: FANMI750
• Fan Size: 750mm
• Motor Power: 260W
• Motor Speeds: 3 adjustable speeds
• Airflow: 155m³/min
• Water Tank Capacity: 49L
• Water Consumption: 8–10L/hr
• Atomization Rate: 0–6kg/h
• Temperature Reduction: 2–8°C
• Affected Distance: Up to 10m
• Power Supply: 240V (50Hz)
• Weight (Including Skid): 33kg
• Skid Shipping Dimensions: 114 x 80 x 69 cm
• Box 1 Dimensions: 69 x 51 x 43.5 cm – 13.1kg
• Box 2 Dimensions: 82 x 82 x 12 cm – 7.15kg
• Box 3 Dimensions: 114 x 20 x 8 cm – 4.85kg
