Millers Falls Air Pump 3 Cylinder Suit ACB30100 ACBPUMP3065
or 4 interest-free payments of $57.49 with Afterpay or Zip

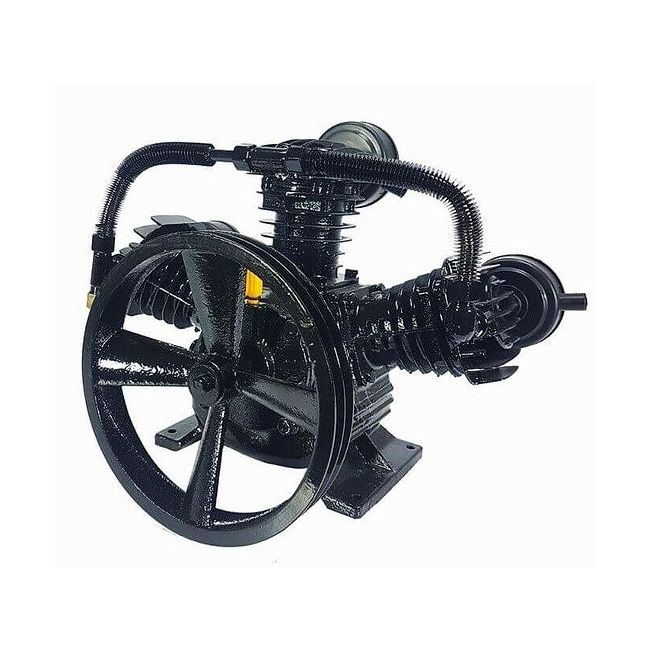

Heavy-duty three cylinder cast iron V-type air compressor pump. Single stage design suitable for belt driven applications. Solid cast iron cylinder and crankcase construction for durability and long service life. High displacement of 368L/min (13 CFM) at 980 RPM for strong air delivery. Free Air Delivery of 330L/min @ 8 Bar and 400L/min @ 4 Bar. Commonly paired with 2–3HP electric motors or 6.5–7.5HP petrol engines. Designed for mounting to an air receiver for workshop or industrial setups. Supplied complete with intake filters and flywheel. Manufactured with high-quality components and fittings for reliable performance. Model: ACBPUMP3065. Recommended Working Pressure: 115 PSI. Recommended RPM Range: 900–1200 RPM. Displacement: 368L/min Max (13 CFM). Air Flow @ 8 Bar: 330L/min. Air Flow @ 4 Bar: 400L/min. Power Required (Electric): 2250W (3.0HP / 2.2kW). Power Required (Petrol): 6.5HP – 7.5HP. Pump Configuration: 3 x 65mm Cylinders. Flywheel Diameter: 265mm. Noise Level: 76dB. Package Dimensions: 56.5 x 35 x 45cm. Weight: Gross 21kg / Net 19kg.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Heavy-duty three cylinder cast iron V-type air compressor pump
- Single stage design suitable for belt driven applications
- Solid cast iron cylinder and crankcase construction for durability and long service life
- High displacement of 368L/min (13 CFM) at 980 RPM for strong air delivery
- Free Air Delivery of 330L/min @ 8 Bar and 400L/min @ 4 Bar
- Commonly paired with 2–3HP electric motors or 6.5–7.5HP petrol engines
- Designed for mounting to an air receiver for workshop or industrial setups
- Supplied complete with intake filters and flywheel
- Manufactured with high-quality components and fittings for reliable performance
Specifications
- Model: ACBPUMP3065
- Recommended Working Pressure: 115 PSI
- Recommended RPM Range: 900–1200 RPM
- Displacement: 368L/min Max (13 CFM)
- Air Flow @ 8 Bar: 330L/min
- Air Flow @ 4 Bar: 400L/min
- Power Required (Electric): 2250W (3.0HP / 2.2kW)
- Power Required (Petrol): 6.5HP – 7.5HP
- Pump Configuration: 3 x 65mm Cylinders
- Flywheel Diameter: 265mm
- Noise Level: 76dB
- Package Dimensions: 56.5 x 35 x 45cm
- Weight: Gross 21kg / Net 19kg
- MPN
- ACBPUMP3065
- Manufacturer
- Millers Falls
