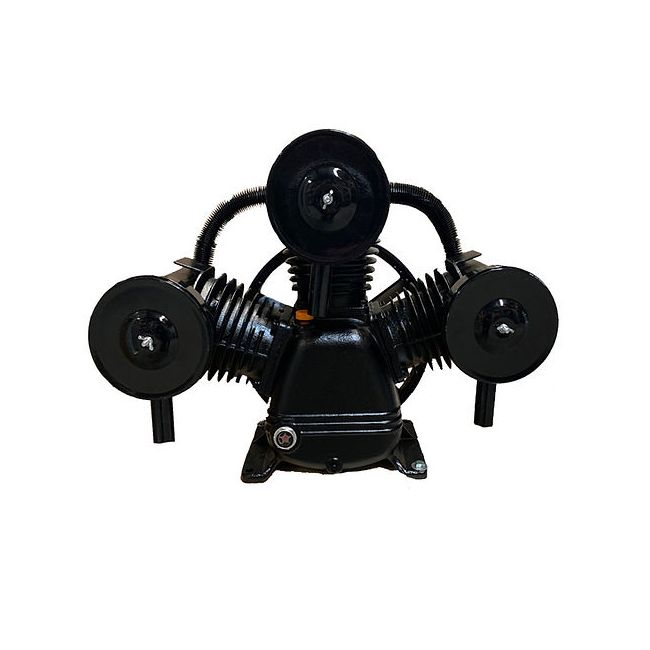

Millers Falls Air Pump Suit ACB15150P-130100P ACBPUMP3090
Availability:
In stock
SKU
ACBPUMP3090
$359.95
Delivery Availability
Delivery Cost & Shipping Time
Millers Falls 350MM 6.5HP Floor Saw W/Millers Falls Engine CPQ300SHC
was
$939.95
Special Price
$599.00
Millers Falls 450MM 13.5HP Floor Saw W/Briggs & Stratton Engine CPQ450BS
was
$1,975.00
Special Price
$1,299.00
Features
- Heavy-duty three cylinder cast iron V-type single stage air compressor pump
- High Free Air Delivery up to 900L/min (32–33 CFM) at up to 125 PSI
- 750L/min F.A.D. at 8 Bar (26 CFM) @ 980 RPM for reliable high-volume output
- Slow-revving design for cooler operation and extended pump life
- Produces greater air volume at lower RPM compared to single or twin cylinder pumps
- Solid cast iron cylinder and crankcase construction for strength and durability
- 100% rebuildable design for long-term serviceability
- Suitable for 3 phase electric, petrol or diesel driven compressor setups
- Commonly paired with 5–7.5HP three phase electric motors or 15HP petrol / 10HP diesel engines
- Supplied complete with intake filters and flywheel
- Built with high-quality components and fittings for dependable performance
Specifications
- Model: ACBPUMP3090
- Recommended Working Pressure: 115 PSI
- Recommended RPM Range: 900–1200 RPM
- Displacement: 900L/min Max (33 CFM)
- Air Flow @ 8 Bar: 850L/min
- Air Flow @ 4 Bar: 980L/min
- Power Required (Electric): 5000W (7.5HP)
- Power Required (Petrol): 15HP
- Power Required (Diesel): 10HP
- Pump Configuration: 3 x 90mm Cylinders
- Noise Level: 80dB
- Package Dimensions: 50 x 30 x 45cm
- Weight: Gross 25kg / Net 20kg
| MPN | ACBPUMP3090 |
|---|---|
| Manufacturer | Millers Falls |
