Features

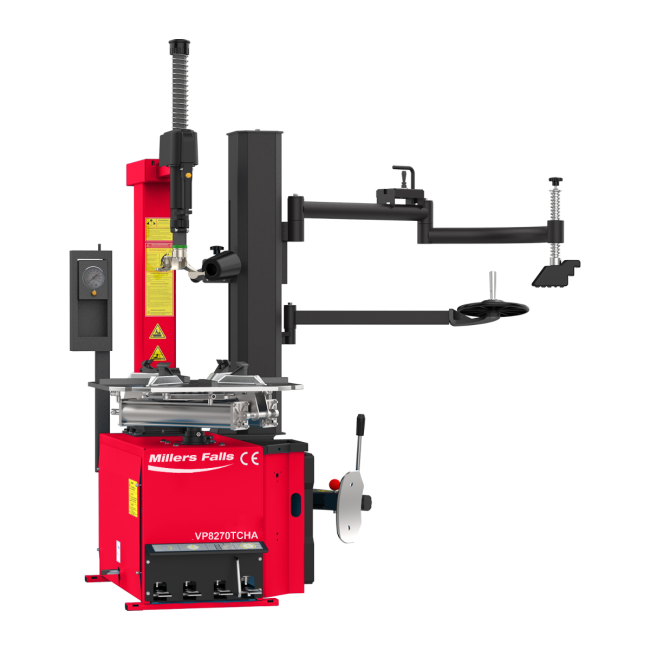

• Automatic tyre changer with pneumatic tilt-back tower
• Robust O41mm hexagon shaft
• Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position
• Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions
• Stainless Tool head with interchangeable plastic inserts for rim protection
• Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types
• Powerful clamping cylinders provide uniform clamping pressure
• Clockwise and anticlockwise rotation of the turntable through electric motor
• The pedal assembly can be removed allowing easy servicing
• Independent tire inflation bay with inflation tube, pressure gauge and pressure release button
• Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard
• Complete with lubrication filter and pressure regulator
• Helper Arm:Rotating arm with bead pressing block for drop-centre rims, to assist fitting and removal of tyres, particularly low profile tyres
• Tyre lifting disk to aid in demounting difficult tyre and wheel combinations
• Mid-position roller helps loosening of the second bead

Specifications

• Model: VP827TCHA
• Rim Clamping Outside: 12"- 28"
• Rim Clamping Inside: 10" - 24"Max. Wheel Diameter: 1150 mmMax. Wheel Width: 3" - 15" mm
• Beadbreaking Force: 2700 kg
• Operation Pressure: 8 -10 Bar
• Motor Power: 1.5 kW
• Power Supply: 220V Single Phase
• Gross Weight: 288 kg
• Packing Dimensions: 1130 mm x 890 mm x 990 mm
• Helper Arm:Gross Weight: 100 kg
• Packing Dimensions: 1270 mm x 530 mm x 420 mm
