Features

• Automatic Tyre Changer for drop-centre and tubeless-tyres on vans, trucks and bus wheels, and wheels with cylindrical rim with rim loop
• Electro-hydraulic operation for superior torque and wheel holding power
• Simple controls and positionable console unit lets the operator safely monitor the tyre-changing process from the most advantageous angle
• Hydraulic sled carriage for positioning, bead loosening, mounting and demounting procedures
• Hydraulic power unit installed on the machine to take up less space
• The new standby function assures considerable energy saving and lower power unit noise emissions
• Overhanging mobile bead breaker disc mounted on self-lubricating bushings
• The clamping chuck rotates in both directions
• Includes a pressure gauge for monitoring hydraulic pressure
• Low voltage 24 v DC supply to remote unit adding an additional level of safety

Specifications

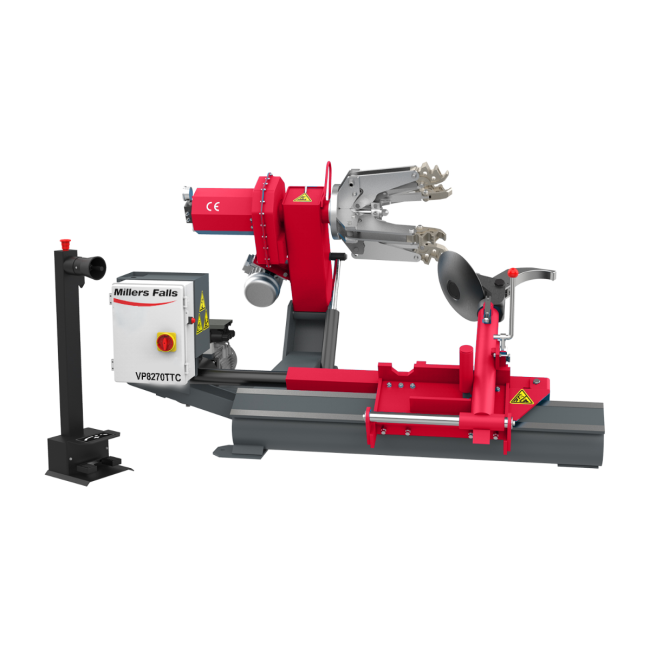

• Model: VP8270TTC
• Rim Clamping Range: 14"- 26"Max. Wheel Diameter: 1600mmMax. Wheel Width: 780mmMax. Tyre Weight: 500 kg
• Beadbreaking Force: 2700kg
• Operation Pressure: 130 Bar
• Gear Box Motor: 1.5 kW
• Hydraulic Motor: 1.5 kW
• Power Supply: 220V Single Phase
• Net Weight: 210kg
• Gross Weight: 618kg
• Packing Dimensions: 2030mm x 1570mm x 850mm
