Features

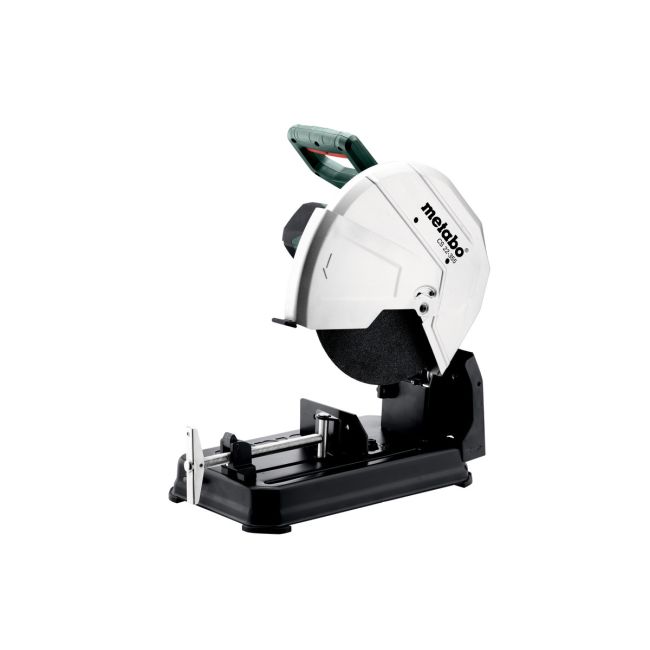

• Powerful metal chop saw designed for cutting profiles, pipes, and rods made of steel, NF metals, iron, and cast profiles.
• Quick clamping device with variable mitre setting allows angled cuts from -15° to 45°.
• Large handle positioned transversely to the cutting axis provides optimum power transmission during cutting.
• Adjustable cutting depth limiter allows efficient use of the cutting disc.
• Easy, fast disc change with spindle lock simplifies maintenance.
• Maximum user safety is provided by a swivelling cutting guard, adjustable spark deflector sheet, and rubberized base for stable, safe cutting.
• Safety switch prevents accidental startup for added protection.
• Robust, large machine table includes practical storage for hexagonal wrenches.
• Portable design with a built-in handle and locking device allows easy transport and storage.

Specifications

• Grinding Wheels (Diameter x Bore): 355 x 25.4 mm (13 31/32 x 1")
• No-Load Speed: 3700 rpm
• Rated Input Power: 2300 W
• Max. Cutting Capacity Round Tube: 132 mm (5 3/16")
• Max. Cutting Capacity Square Tube: 120 x 120 mm (4 23/32 x 4 23/32")
• Max. Cutting Capacity Rectangular Tube: 100 x 208 mm (3 15/16 x 8 3/16")
• Max. Cutting Capacity L-Profile: 150 x 150 mm (5 29/32 x 5 29/32")
• Dimensions of Base Plate: 456 x 256 mm (17 15/16 x 10 1/16")
• Transport Height: 394 mm (15 1/2")
• Weight: 16.8 kg (37 lbs)
• Cable Length: 4 m (13 ft)
