Features

• Includes:
• 1 x Saw Blade "Precision Cut Wood - Classic", 216x30, Z40
• 1 x Material Clamp
• 1 x Tool for Saw Blade Change
• 1 x Chip Collection Bag
• 2 x Table Length Extensions
• 1 x Length Guide
• Features:

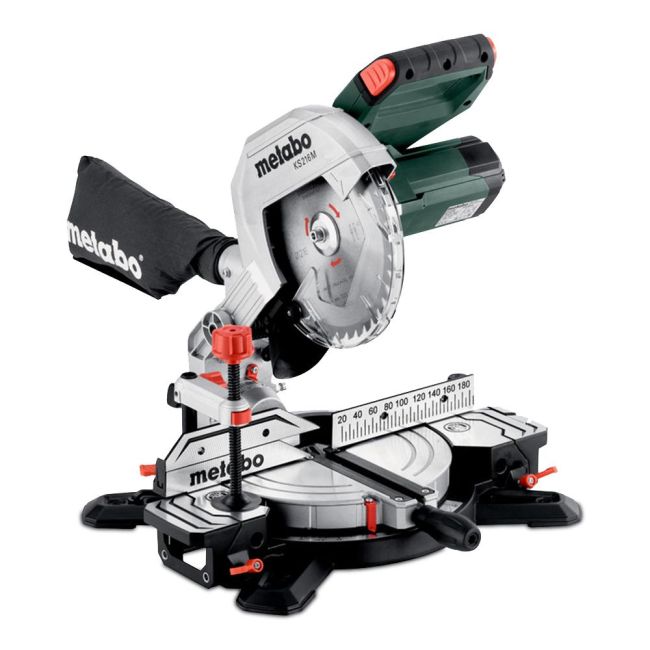

• Compact crosscut and mitre saw of the mobile M-class - light, precise, user-friendly
• Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
• Turntable with fast, precise setting of common angles using stop points
• Saw blade inclination from -2 to 47 degrees, therefore also suited for undercuts
• Robust die-cast aluminium design for the highest demands
• Effective dust extraction via integrated dust scoop
• Extendable table width extensions, also removable to put underneath extremely long work pieces
• Quick-action clamp for secure fixing of the work piece from the top or front
• All scales and operating elements are visible from the working position and can be operated intuitively
• Ergonomic handle areas for carrying with one or two hands

Specifications

• Support Surface: 155mm x 725mm (6.1" x 28.54") Maximum Cutting Width 90 degrees/45 degrees: 120mm / 80mm (4.687" / 3-1/8") Maximum Cutting Depth at 90 degrees/45 degrees: 60mm / 45mm (2-3/8" / 1-3/4") Cutting Capacity 90 degrees/90 degrees: 120mm x 60mm (4-11/16" x 2-3/8 ") Cutting Capacity 45 degrees/45 degrees: 80mm x 45mm (3.1625 x 1-3/4") Turntable Setting left/right: 47 / 47 degrees Saw Blade Tilt left/right: 47 / 2 degrees Saw Blade: 216 x 30 mm // 8 1/2 x 1.181 " Rated Input Power: 1100 W Rated Input Power S1 100%: 1100 W Rated Input Power S6 20%: 1350 W No-load Speed: 5000 rpm Speed at Rated Load: 3800rpm Cable Length: 2m (7ft) Noise Emission: Cutting Speed: 57 m/s (187 ft/min) Dimensions: 477mm x 463mm x 490mm Weight: 8.7kg
