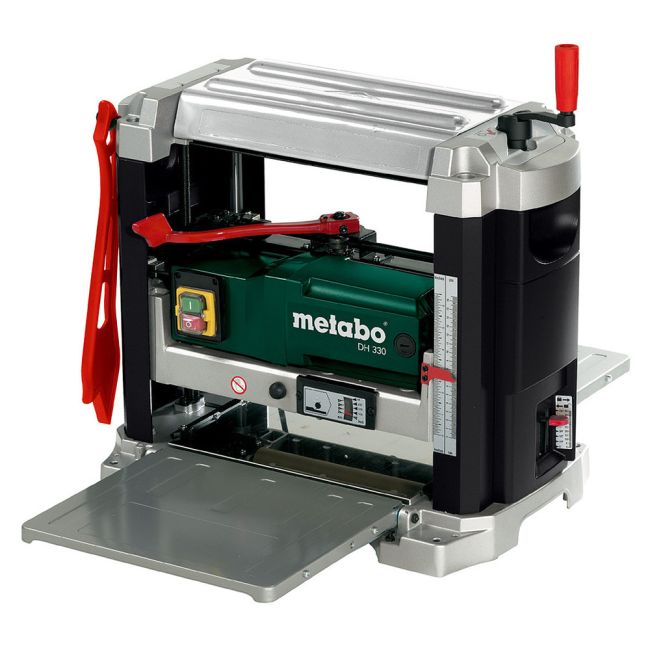

Features

• Ideal for mobile use due to low weight
• Lateral depth stop adjustment
• Large table length
• Powerful universal motor for powerful lugging drive and even planing result
• Precise thickness adjustment for quick and exact planning
• Large supply and delivery tables support the conveyance of long materials; for ideal planing results
• Planing locking mechanism prevents unintentional adjustment of the chip removal setting and guarantees precise work results
• For single phase alternating current

Specifications

• Dimensions (L x W x H): 579mm x 857mm x 574mm
• Chip removal:
• Thickness planing: 0 - 3mm
• Material:
• Thickness table: Cast aluminum / special steel aluminum
• Thickness table (L x W): 840mm x 330mm
• Passage (H x W): 152mm x 330mm
• Feed rate: 7.51m/min
• Diameter of blade shaft: 47mm
• Number of blades: 2
• Revolutions of blade shaft: 9,800/min
• Rated input power: 1,800W
• Fuse protection: T 16 A
• Weight: 35kg

Includes

• 2 integrated HSS reversible planer blades
• Push stick
• Extraction nozzle
