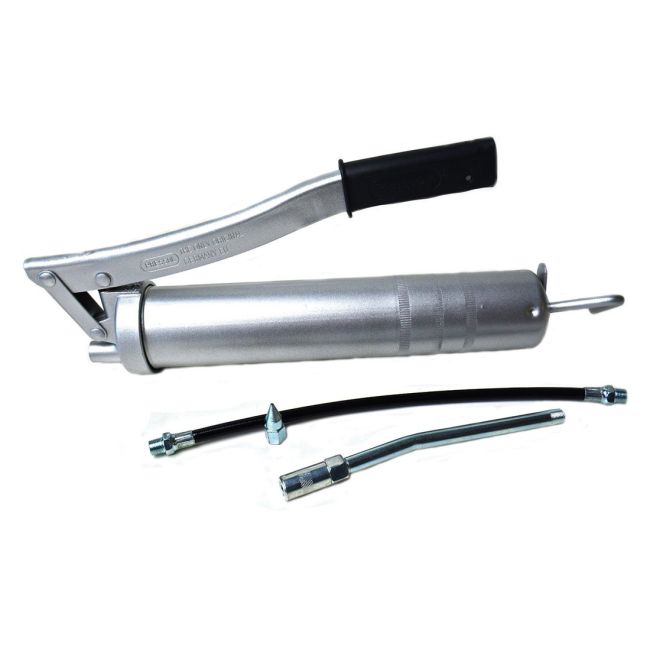

Pressol Grease Gun Industrial Set Heavy Duty Variable Delivery 126765
Availability:
In stock
SKU
126765
$249.00
Delivery Availability
Delivery Cost & Shipping Time
Pressol Funnel Set 4 Piece 50-100mm Oil Petrol & Acid Resistant 02360
was
$14.90
Special Price
$7.90
Pressol Grease Gun Double Cuff With Tight Fit For Oils & Fluid Greases 12602125
was
$139.00
Special Price
$59.00
Specifications
- Grease gun connection, pressure-side through a steel adaptor: G 1/8''
- Filling nipple and ventilating valve: M 10 x 1
- Capacity (cm): 500
- Refilling options: 400 g grease cartridge, DIN 1284, grease gun filling system or bulk grease
- Diameter of grease piston (mm): 9
- Actuation grease piston: manually lever operated
- Discharge pressure (bar): up to 400 bar
- Burst pressure system (bar): 850
- Burst pressure grease gun head (bar): 1200
- Operation of plunger rod: with T-grip
- Sealing cover: loose
- Wall thickness of grease gun tube (mm): 1
- Surface treatment: all steel components are galvanized
- 390 x 130 x 66
- 1.54kgs
- With 1 high pressure hose, G 1/8", 11 x 300 mm
- With 1 spout, angled, G 1/8'', 150 mm
- With 2 precision machined hydraulic couplers, 4 jaws, G 1/8''
- Posi Lok
- Variable Stroke System
- Double Lock
- Operates with greases up to NLGI grade 2.
- Designed to be utilised under rough conditions, wall thickness grease gun tube: 1,5 mm
- Plunger with exactly fitting when using bulk grease or cartridge
- Acc. to DIN 1283
- Pump piston with high accuracy of fit to the cylinder
- No dummy (apparent) lubrication. Sealing system: O-ring and ball valve prevent grease compressed in the grease gun head from feeding back.
- Performance unchanged after 5000 actuating cycles
- Separate filling and ventilation valves on grease gun head
- Grease gun head, zinc die casting Z 410
- Sure grip handling due to deep band knurls
- The ergonomic handle of the plunger rod assists in overcoming the spring load
- Slip resistant handle on grease gun lever
- Enables even under extreme backpressure, a variable lubrication pressure with steady effort applied
- Allows lubrication in difficult to reach locations because the smallest lever operation results in grease being pumped reliably to the lubrication point.
- Plunger rod clamp on end cap enables manual pressure to be applied to spring to compress bulk grease, or to force in the plunger in damaged cartridges.
- High-speed ventilation, by half a rotation of the grease gun tube
| Manufacturer | Pressol |
|---|
