Features

• Key Features
• Available with leading 7-Year Warranty*

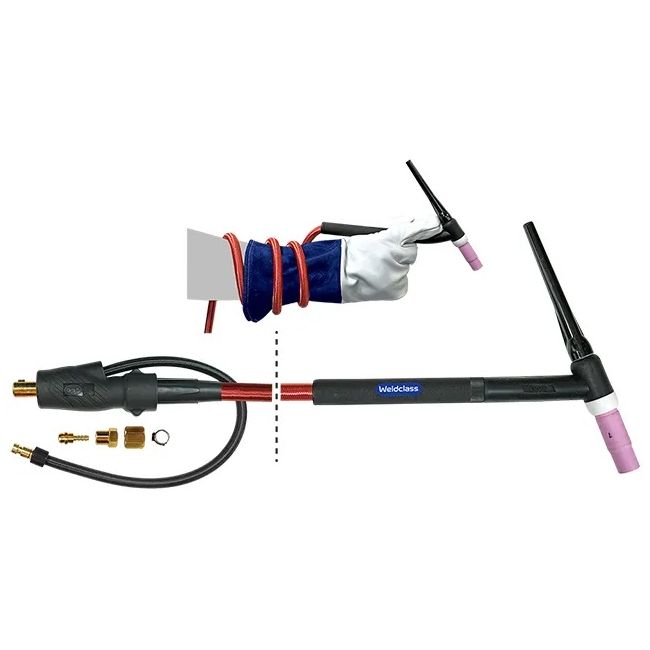

• Super-flex 1-piece cable, flexi torch head & slimline handle
• Universal fit: Includes range of different gas fittings to suit different machines
• Ready-to-weld, with parts kit included
• Includes
• Super-Flex 1-piece cable (power & gas in one cable) with braided cover
• Cylindrical low-profile torch handle to allow pencil-grip
• Flexible torch #17F head (without valve)
• "Ready-to-weld" parts kits with 1pc each: 57Y02 Long Back Cap, 10N23 1.6mm Collet, 10N31 1.6mm Collet Body, 10N47 Ceramic Cup, 1.6mm Rare Earth Tungsten Electrode
• Large '35-50' male connector (13mm plug) to suit most welders 180-200A & above
• Gas fittings: 9mm quick-connect male plug (fitted) + additional threaded gas fittings to suit most brands/models of TIG welding machines (5/8UNF male, M12x1 female, 3/8BSP female)*
• For fitting torch to machines that have threaded gas outlet, cut off the existing quick-connect fitting and replace with the applicable threaded fitting, using hose nipple/barb and hose clamps supplied with torch
• Typical Application
• For use on professional TIG welding machines (typically AC/DC machines), where:
• Operator is using a foot pedal / foot controller
• Light weight, flexible and slimline torch is preferred for maximum dexterity & control
• Valve, switch & other controls on the torch head are NOT required, as all controls/adjustments are made via the foot pedal
• Other Specifications
• TK17 series: 150 amp max capacity: suitable for use with tungsten electrodes up to 2.4mm, and for welding materials up to approx' 3mm thickness
• Suits most TIG welders that have foot control function, including AC/DC and professional DC-only machines
• Suits all Weldclass / Weldforce AC/DC TIG machines
• Not recommneded for use with 'basic' TIG welders that do not have integrated gas line or pedal/foot control*
• For this application, use Weldclass 17FV or 26FV series torches, which have valved head and extended gas hose with 5/8" female fitting for connection to gas bottle/regulator.
