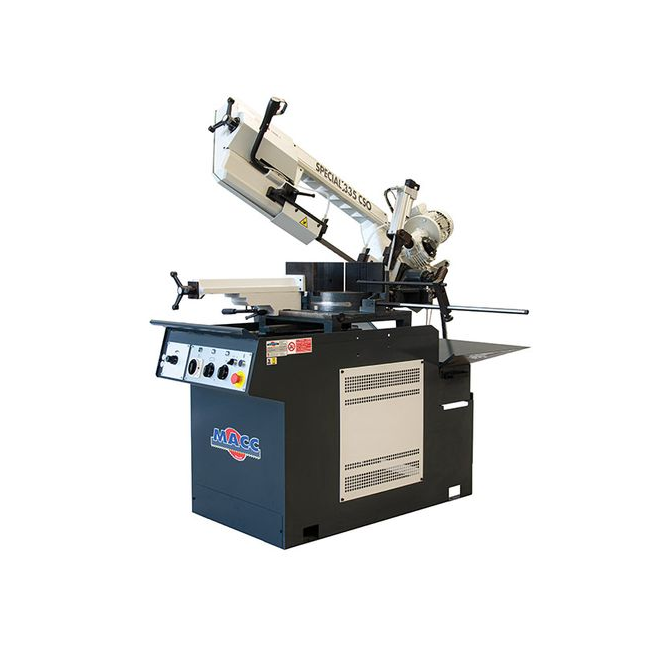

MACC 240V 1PH 260MM SWIVEL HEAD BANDSAW MB-335CSO-1
Availability:
Special Order
SKU
MB-335CSO-1
Delivery Availability
Delivery Cost & Shipping Time
Features
- Premium Italian-made construction ensures top-quality craftsmanship, precision, and durability, ideal for professional cutting applications.
- 2-way swivel head enables mitre cuts from 0° to 60°, offering outstanding versatility for angled and compound cuts across a variety of materials.
- Dual mode operation for enhanced flexibility and control:
- Trigger switch with manual down feed for quick, small cuts and fine adjustments.
- Control panel with fully adjustable hydraulic down feed and automatic shut-off at the end of the cut, perfect for larger or more precise jobs.
- Heavy-duty dual direction vice ensures secure clamping from multiple angles, boosting cutting stability and accuracy.
- Integrated recirculating coolant system keeps the blade cool, delivers a smoother finish, and extends blade lifespan.
- Adjustable material stop enables repeatable, consistent cuts — ideal for production and batch work.
- Supplied complete with a robust stand and a high-quality blade, ready for immediate use right out of the box.
- Equipped with a safety emergency stop switch for fast shutdown, enhancing operator safety.
- Optional variable speed model available to handle a wider range of materials and cutting requirements.
Specifications
- Motor: 1.5 hp, Single Phase (240V)
- Blade speed: Single speed at 75 m/min
- Blade size: 27 mm x 0.9 mm x 3010 mm
- Weight: 365 kg
Cutting Capacity
- 90° cutting capacity — Round: 260 mm; Square: 250 mm; Rectangle: 330 x 220 mm
- 45° right cutting capacity — Round: 215 mm; Square: 200 mm; Rectangle: 210 x 160 mm
- 60° right cutting capacity — Round: 130 mm; Square: 130 mm; Rectangle: 140 x 130 mm
- 45° left cutting capacity — Round: 180 mm; Square: 155 mm; Rectangle: 225 x 60 mm
| MPN | MB-335CSO-1 |
|---|---|
| Manufacturer | Macc |
