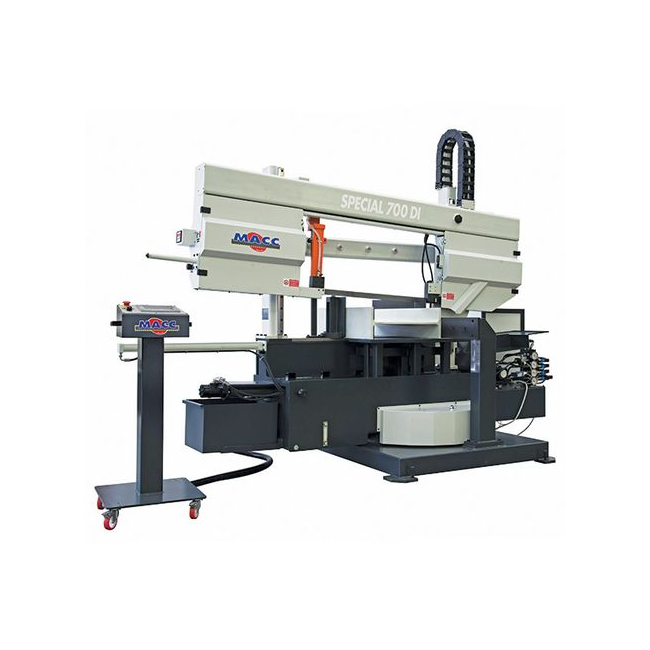

MACC 415V 3PH 515x700MM DUAL COLUMN SWIVEL HEAD BANDSAW MB-700DI-MAX
Premium Italian-made construction ensures exceptional quality, accuracy, and long-term durability — perfect for heavy-duty industrial applications. Dual column design offers superior accuracy and rigidity, ensuring precise and stable cuts even on large materials. Advanced touch screen control panel provides intuitive, easy-to-use programming and operation. Semi-automatic programmable operation for enhanced productivity and consistent cutting results. High-capacity variable speed control motor with inverter allows precise adjustment of blade speed to suit a wide range of materials and cutting requirements. Electro-mechanical blade tensioner ensures optimal blade tension for improved cutting accuracy and blade life. Vertical vice designed for bundle cutting, providing secure clamping and maximum stability. Equipped with a safety emergency stop switch for immediate shutdown and enhanced operator safety. Delivered complete with a sturdy stand and high-quality blade, ready for immediate use out of the box. Optional powered roller conveyors (entry and exit) and vertical rollers available to further improve material handling and workflow efficiency. Optional software for creating cutting profiles directly from a computer, compatible with the Special 700 DI Max model. Motor: 5.36 hp, Three Phase (415V). Blade speed: Variable from 20 to 90 m/min. Blade size: 41 mm x 1.3 mm x 5740 mm. Weight: 2460 kg. 90° cutting capacity — Round: 525 mm; Square: 500 mm; Rectangle: 700 x 490 mm. 45° right cutting capacity — Round: 380 mm; Square: 380 mm; Rectangle: 500 x 380 mm. 60° right cutting capacity — Round: 210 mm; Square: 210 mm; Rectangle: 500 x 210 mm. 45° left cutting capacity — Round: 525 mm; Square: 490 mm; Rectangle: 500 x 490 mm.
Read full descriptionSpecial Order
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Premium Italian-made construction ensures exceptional quality, accuracy, and long-term durability — perfect for heavy-duty industrial applications.
- Dual column design offers superior accuracy and rigidity, ensuring precise and stable cuts even on large materials.
- Advanced touch screen control panel provides intuitive, easy-to-use programming and operation.
- Semi-automatic programmable operation for enhanced productivity and consistent cutting results.
- High-capacity variable speed control motor with inverter allows precise adjustment of blade speed to suit a wide range of materials and cutting requirements.
- Electro-mechanical blade tensioner ensures optimal blade tension for improved cutting accuracy and blade life.
- Vertical vice designed for bundle cutting, providing secure clamping and maximum stability.
- Equipped with a safety emergency stop switch for immediate shutdown and enhanced operator safety.
- Delivered complete with a sturdy stand and high-quality blade, ready for immediate use out of the box.
- Optional powered roller conveyors (entry and exit) and vertical rollers available to further improve material handling and workflow efficiency.
- Optional software for creating cutting profiles directly from a computer, compatible with the Special 700 DI Max model.
Specifications
- Motor: 5.36 hp, Three Phase (415V)
- Blade speed: Variable from 20 to 90 m/min
- Blade size: 41 mm x 1.3 mm x 5740 mm
- Weight: 2460 kg
Cutting Capacity
- 90° cutting capacity — Round: 525 mm; Square: 500 mm; Rectangle: 700 x 490 mm
- 45° right cutting capacity — Round: 380 mm; Square: 380 mm; Rectangle: 500 x 380 mm
- 60° right cutting capacity — Round: 210 mm; Square: 210 mm; Rectangle: 500 x 210 mm
- 45° left cutting capacity — Round: 525 mm; Square: 490 mm; Rectangle: 500 x 490 mm
- MPN
- MB-700DI-MAX
- Manufacturer
- Macc
