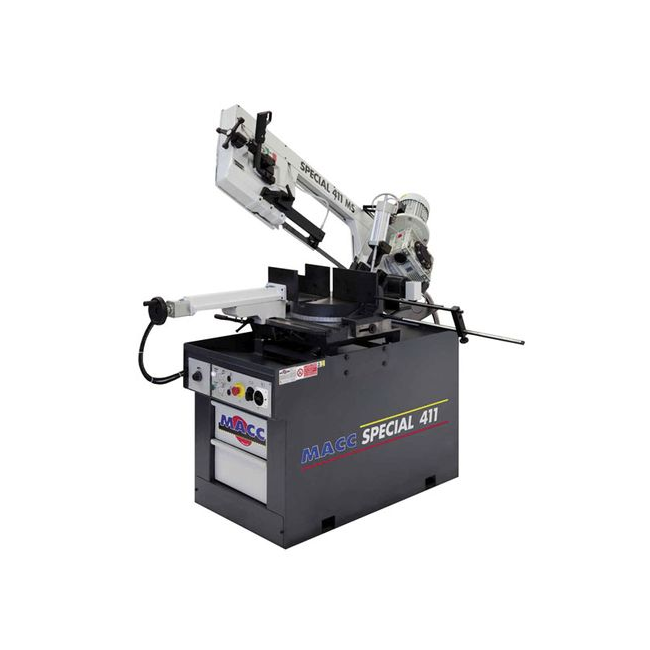

MACC 415V 3PH 300MM SWIVEL HEAD BANDSAW MB-411MS-3

Features

• Premium Italian-made construction delivers exceptional quality, precision, and long-lasting durability — perfect for professional and industrial cutting applications.
• 2-way swivel head enables mitre cuts from 0° to 60°, offering outstanding versatility for angled and compound cuts on various materials.
• Dual mode operation provides maximum flexibility and efficiency:
  • Trigger switch with manual down feed for quick, small cuts and precise manual control.
  • Semi-automatic function designed for large production jobs, improving productivity and reducing operator fatigue.
• Heavy-duty dual direction vice ensures strong, secure clamping from multiple angles, enhancing cutting accuracy and workpiece stability.
• Integrated recirculating coolant system keeps the blade cool, improves cut finish, and extends blade life.
• Adjustable material stop allows for consistent, repeatable cuts — ideal for batch and production work.
• Equipped with a safety emergency stop switch for immediate shutdown, enhancing operator safety.
• Includes a 12-month warranty for peace of mind and reliable support.
• Delivered complete with a sturdy stand and a high-quality blade, ready for immediate use out of the box.

Semi-Automatic Function

• Operator inserts material
• Operator presses start button
• Vice clamps material
• Blade motor starts
• Bow lowers to cut material
• Bow rises automatically
• Blade stops
• Vice opens
• Cycle repeats

Specifications

• Motor: 2 hp, Three Phase (415V)
• Blade speed: Two-speed options at 38 or 77 m/min
• Blade size: 27 mm x 0.9 mm x 3200 mm
• Weight: 575 kg

Cutting Capacity

• 90° cutting capacity — Round: 300 mm; Square: 280 mm; Rectangle: 400 x 200 mm
• 45° right cutting capacity — Round: 230 mm; Square: 215 mm; Rectangle: 225 x 140 mm
• 60° right cutting capacity — Round: 140 mm; Square: 140 mm; Rectangle: 140 x 140 mm
• 45° left cutting capacity — Round: 180 mm; Square: 160 mm; Rectangle: 180 x 110 mm
