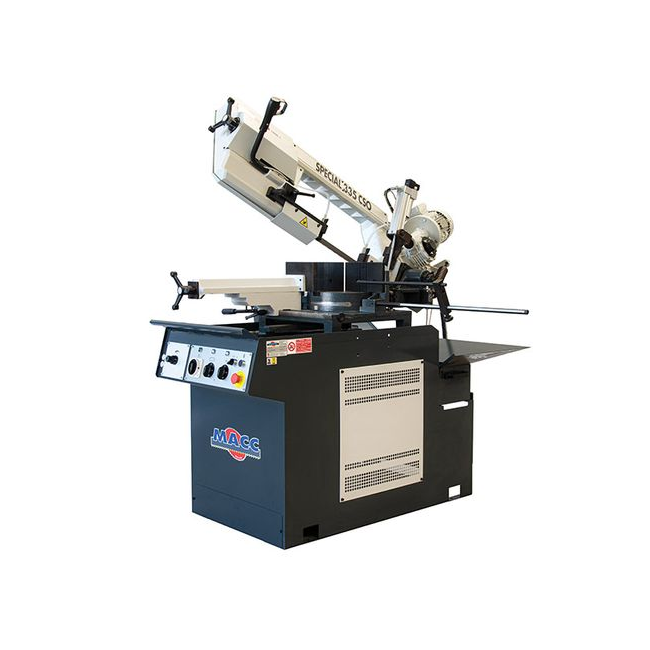

MACC 240V 1PH 260MM SWIVEL HEAD BANDSAW MB-335CSOV-1

Features

• Premium Italian-made construction ensures exceptional build quality, precision, and durability — ideal for demanding workshop and industrial environments.
• Variable speed model offers adjustable blade speed from 20 to 90 m/min, providing the flexibility to cut a wide range of materials with ease and accuracy.
• 2-way swivel head enables mitre cuts from 0° to 60°, allowing for versatile angled and compound cutting applications.
• Dual mode operation delivers ultimate control:
  • Trigger switch with manual down feed for quick, small cuts and fine-tuned manual control.
  • Control panel with fully adjustable hydraulic down feed and automatic shut-off at the end of the cut, perfect for larger or more precise workpieces.
• Heavy-duty dual direction vice ensures stable and secure clamping from multiple angles, improving cutting accuracy and safety.
• Integrated recirculating coolant system keeps the blade cool, enhances surface finish, and extends blade life.
• Adjustable material stop allows for repeatable, consistent cuts — ideal for batch and production work.
• Supplied complete with a sturdy stand and high-quality blade, ready for immediate use right out of the box.
• Equipped with a safety emergency stop switch for fast, safe shutdown, ensuring operator safety at all times.

Specifications

• Motor: 1.5 hp, Single Phase (240V)
• Blade speed: Variable speed from 20 to 90 m/min
• Blade size: 27 mm x 0.9 mm x 3010 mm
• Weight: 365 kg

Cutting Capacity

• 90° cutting capacity — Round: 260 mm; Square: 250 mm; Rectangle: 330 x 220 mm
• 45° right cutting capacity — Round: 215 mm; Square: 200 mm; Rectangle: 210 x 160 mm
• 60° right cutting capacity — Round: 130 mm; Square: 130 mm; Rectangle: 140 x 130 mm
• 45° left cutting capacity — Round: 180 mm; Square: 155 mm; Rectangle: 225 x 60 mm
