Features

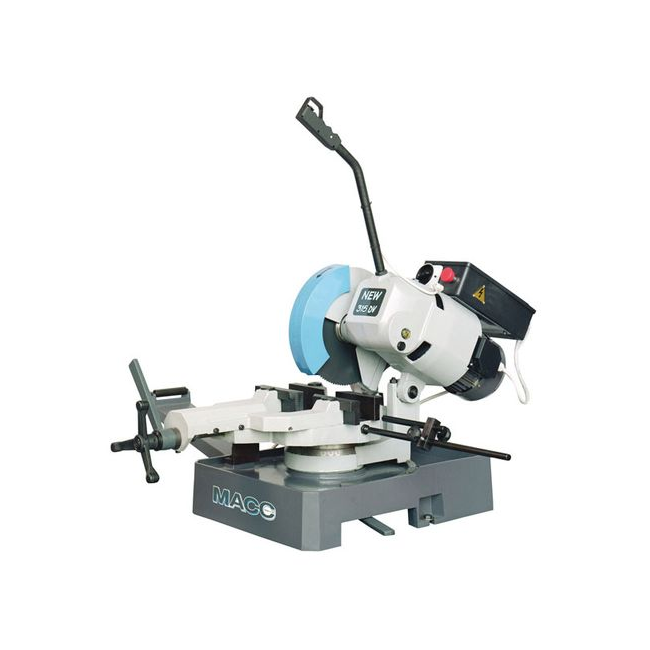

• Italian-made premium construction ensures outstanding durability, precision, and long-lasting performance, specifically engineered for stainless steel cutting.
• Based on the NEW315DV model but equipped with slower rpm, making it ideal for stainless steel applications where cooler, controlled cuts are critical.
• Swivel head design pivots 45° to both left and right, providing excellent flexibility for miter and angled cuts.
• Convenient trigger switch operation offers smooth, precise control for accurate cutting results.
• Quick-locking double vice firmly holds workpieces, delivering clean, burr-free cuts consistently.
• Blade protection clutch system safeguards the blade and material when transitioning between different material thicknesses, protecting cutting teeth and improving safety.
• Integrated recirculating mechanical coolant system extends blade life and ensures cooler, higher-quality cuts.
• Adjustable material stop allows for consistent, repeatable cuts, making it perfect for production work.
• Safety emergency stop switch provides immediate shutdown for enhanced operator protection.
• Includes a 12-month warranty for added peace of mind and dependable support.
• Comes complete with blade, ready for immediate use out of the box.
• Optional stand available (Part# MC-STAND315) for greater convenience and flexible workstation setup.

Specifications

• Motor: 3 hp, three-phase (415V)
• Blade speed: Two speeds, 20 / 40 rpm
• Blade size: 315 mm
• Blade bore: 32 mm
• Weight: 170 kg

Cutting Capacity

• 90° cutting capacity — Solid round: 65 mm; Round tube: 90 mm; Square: 85 mm; Rectangle: 120 x 70 mm
• 45° cutting capacity (left & right) — Solid round: 60 mm; Round tube: 80 mm; Square: 70 mm; Rectangle: 80 x 70 mm
