Features

• Premium Italian-made quality with an extra heavy-duty design ensures superior durability, strength, and reliable performance for demanding industrial use.

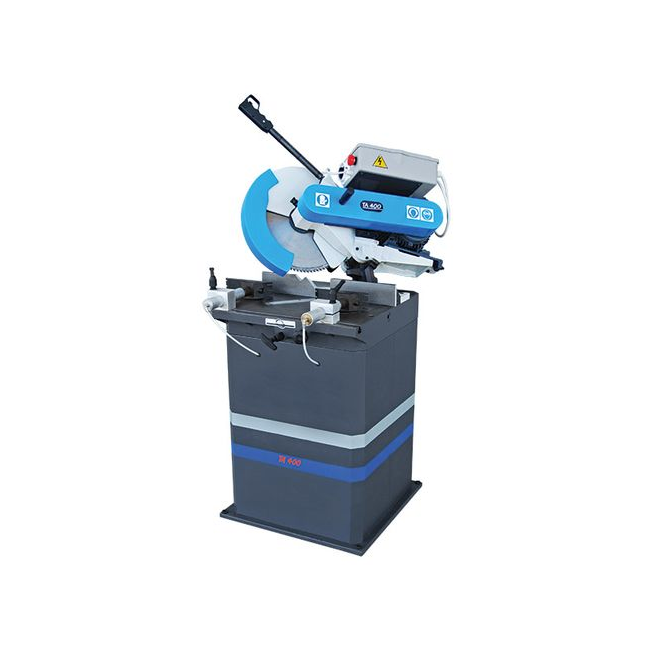

• Compound mitre saw designed specifically for non-ferrous metals such as aluminium, copper, and brass, providing precise and clean cuts.
• Swivel head pivots 45° to both right and left, offering excellent versatility for angled and miter cuts.
• Mitre head adjusts 45° to the left for added flexibility when cutting complex angles.
• Easy trigger switch operation enables smooth, controlled cutting for consistent and accurate results.
• Twin manual sliding vices with Teflon jaws securely hold materials without marking, ensuring burr-free, high-quality finishes.
• Includes a stand for added stability and convenient operation.
• Fully recirculating coolant system maintains cooler cutting temperatures, extends blade life, and improves surface finish.
• Enhanced with advanced pneumatic features:
  • Two pneumatic spring return vices automatically clamp material when the trigger switch is engaged.
  • Cutting fluid supply to the blade is activated simultaneously with vice engagement.
  • Material is automatically released, and fluid mist deactivates upon head return.
• Equipped with a safety emergency stop switch for immediate shutdown to maximize operator safety.
• Includes a 12-month warranty for peace of mind and dependable support.
• Blade sold separately, allowing customization for specific cutting applications.
• Requires an air compressor to power the pneumatic vice system.

Specifications

• Motor: 3 hp, three-phase (415V)
• Blade speed: Single speed, 3,000 rpm
• Blade size: 400 mm
• Blade bore: 32 mm
• Weight: 160 kg
