Features

• Premium Italian-made quality with an extra heavy-duty design ensures exceptional durability and reliable performance for industrial cutting tasks.

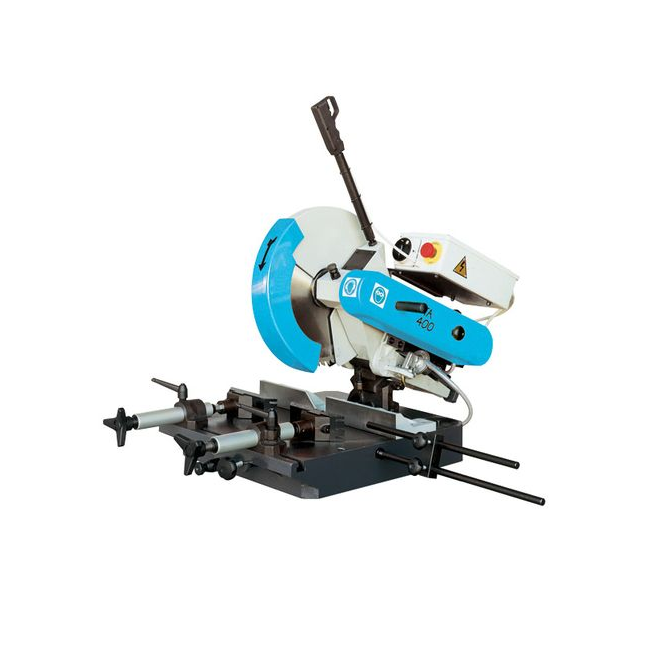

• Compound mitre saw specifically engineered for non-ferrous metals such as aluminium, copper, and brass, delivering clean and precise cuts.
• Swivel head pivots 45° to both left and right, providing excellent versatility for miter and angled cuts.
• Mitre head capable of adjusting 45° to the left for additional flexibility when cutting complex angles.
• Trigger switch operation enables smooth, controlled cutting for accurate results every time.
• Twin manual sliding vices with Teflon jaws ensure secure, non-marring clamping of materials, producing burr-free finishes.
• Fully recirculating mechanical coolant system keeps cuts cool, extends blade life, and enhances surface finish quality.
• Equipped with a safety emergency stop switch for immediate shutdown, ensuring operator safety during operation.
• Backed by a 12-month warranty for peace of mind and dependable support.
• Blade sold separately, allowing you to choose the most suitable blade for your specific cutting applications.

Specifications

• Motor: 3 hp, three-phase (415V)
• Blade speed: Single speed, 3,000 rpm
• Blade size: 400 mm
• Blade bore: 32 mm
• Weight: 160 kg

Cutting Capacity

• 90° cutting capacity — Solid round: 60 mm; Round tube: 140 mm; Square: 110 mm; Rectangle: 180 x 100 mm
• 45° cutting capacity (left & right) — Solid round: 60 mm; Round tube: 130 mm; Square: 100 mm; Rectangle: 150 x 100 mm
