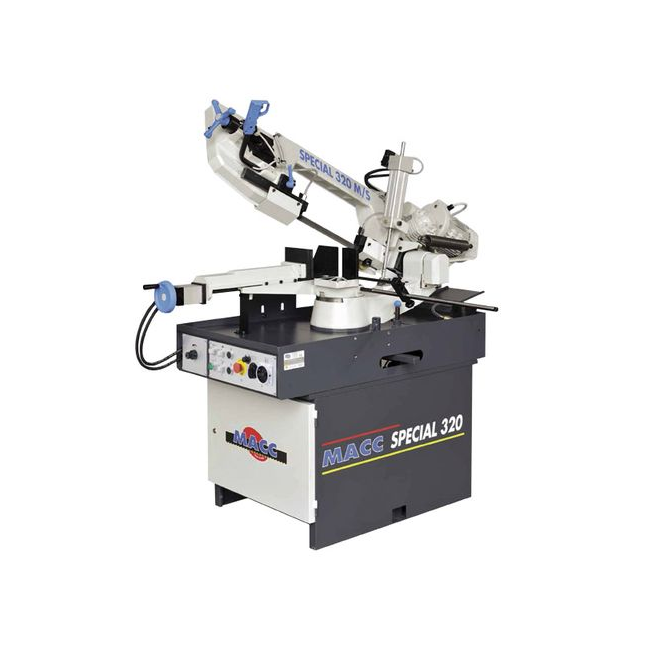

MACC 415V 3PH 230MM SWIVEL HEAD BANDSAW MB-320MS-3
Premium Italian-made construction ensures exceptional quality, precision, and long-lasting durability — perfect for demanding workshop and industrial environments. 1-way swivel head enables mitre cuts from 0° to 60°, offering excellent versatility for angled and compound cutting applications. Dual mode operation provides ultimate flexibility: Trigger switch with manual down feed for quick, small cuts and fine adjustments. Semi-automatic function designed for high-volume production jobs, reducing operator effort and increasing efficiency. Integrated recirculating coolant system keeps the blade cool, enhances cutting finish, and extends blade lifespan. Adjustable material stop allows for consistent, repeatable cuts — ideal for batch and production work. Equipped with a safety emergency stop switch for immediate shutdown, prioritizing operator safety. Includes a 12-month warranty for peace of mind and reliable support. Supplied complete with a sturdy stand and a high-quality blade, ready to use straight out of the box. Operator inserts material. Operator presses start button. Vice clamps material. Blade motor starts. Bow lowers to cut material. Bow rises automatically after the cut. Blade stops. Vice opens. Cycle repeats. Motor: 1.5 hp, Three Phase (415V). Blade speed: Two-speed options at 35 or 71 m/min. Blade size: 27 mm x 0.9 mm x 2825 mm. Weight: 390 kg. 90° cutting capacity — Round: 230 mm; Square: 220 mm; Rectangle: 295 x 170 mm. 45° right cutting capacity — Round: 190 mm; Square: 180 mm; Rectangle: 210 x 180 mm. 60° right cutting capacity — Round: 120 mm; Square: 120 mm; Rectangle: 120 x 120 mm.
Read full descriptionSpecial Order
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Premium Italian-made construction ensures exceptional quality, precision, and long-lasting durability — perfect for demanding workshop and industrial environments.
- 1-way swivel head enables mitre cuts from 0° to 60°, offering excellent versatility for angled and compound cutting applications.
- Dual mode operation provides ultimate flexibility:
- Trigger switch with manual down feed for quick, small cuts and fine adjustments.
- Semi-automatic function designed for high-volume production jobs, reducing operator effort and increasing efficiency.
- Integrated recirculating coolant system keeps the blade cool, enhances cutting finish, and extends blade lifespan.
- Adjustable material stop allows for consistent, repeatable cuts — ideal for batch and production work.
- Equipped with a safety emergency stop switch for immediate shutdown, prioritizing operator safety.
- Includes a 12-month warranty for peace of mind and reliable support.
- Supplied complete with a sturdy stand and a high-quality blade, ready to use straight out of the box.
Semi-Automatic Function
- Operator inserts material
- Operator presses start button
- Vice clamps material
- Blade motor starts
- Bow lowers to cut material
- Bow rises automatically after the cut
- Blade stops
- Vice opens
- Cycle repeats
Specifications
- Motor: 1.5 hp, Three Phase (415V)
- Blade speed: Two-speed options at 35 or 71 m/min
- Blade size: 27 mm x 0.9 mm x 2825 mm
- Weight: 390 kg
Cutting Capacity
- 90° cutting capacity — Round: 230 mm; Square: 220 mm; Rectangle: 295 x 170 mm
- 45° right cutting capacity — Round: 190 mm; Square: 180 mm; Rectangle: 210 x 180 mm
- 60° right cutting capacity — Round: 120 mm; Square: 120 mm; Rectangle: 120 x 120 mm
- MPN
- MB-320MS-3
- Manufacturer
- Macc
